What is the Bosch Rexroth 3842557600?

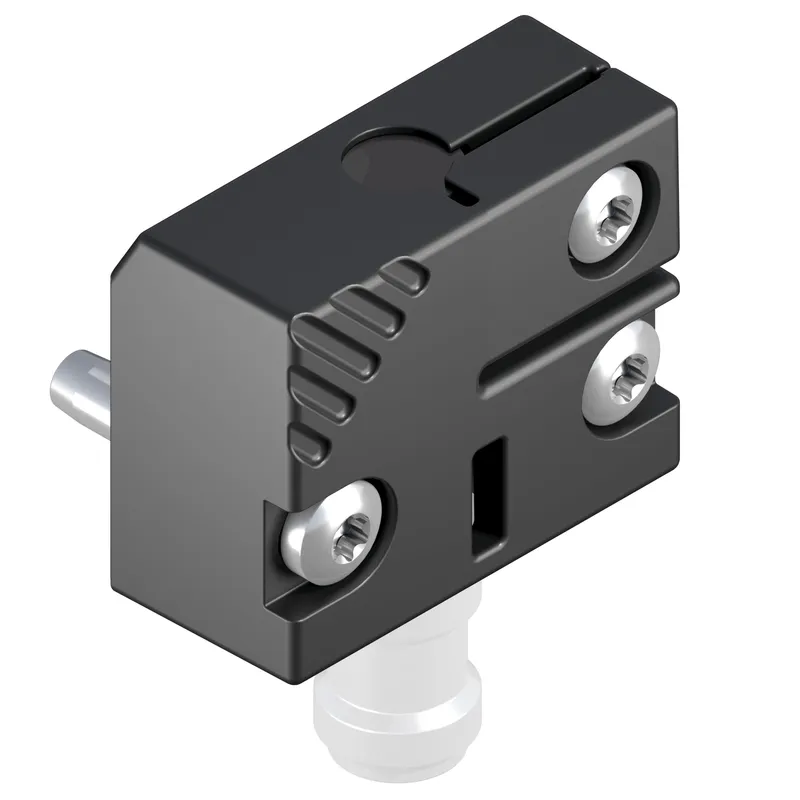

Switch bracket SH 2/UV

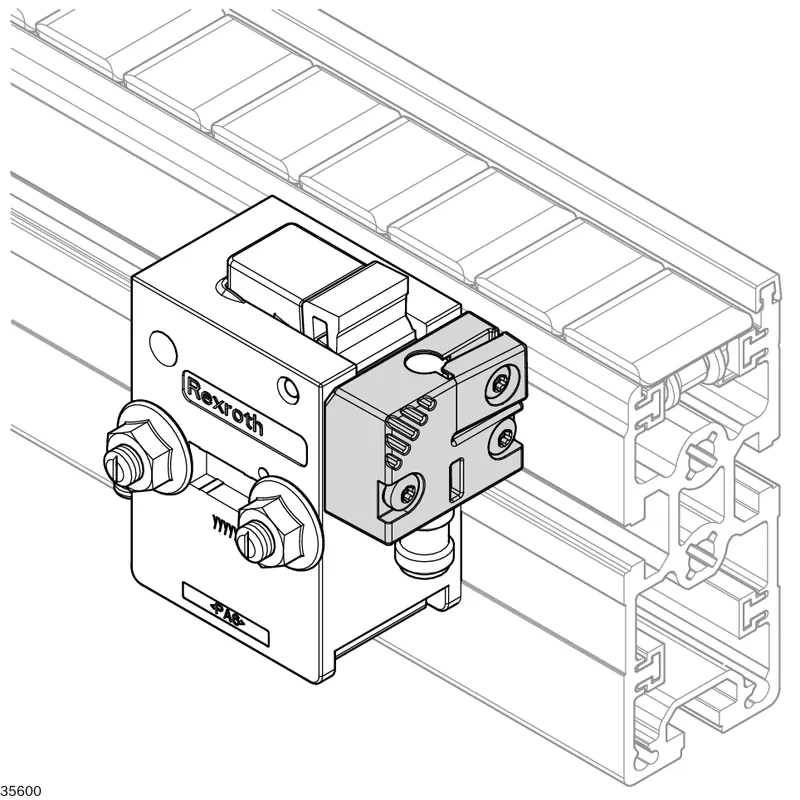

For fastening a sensor and attaching to the stop gate VE 2

Suitable for querying the workpiece pallet position from below

The short length of the switch bracket enables recognition of the operating status of the sensor

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The switch bracket can be used to fix a sensor M12x1 in place for lateral sensing of the workpiece pallet position

Specifications

Color	Black
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	PA 66
Required accessories	Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush
Weight [kg]	0.03
