Bosch Rexroth 3842547785
STOP GATE VE 2/D-60
- MPN
- 3842547785
- Category
- Dampened stop gates
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

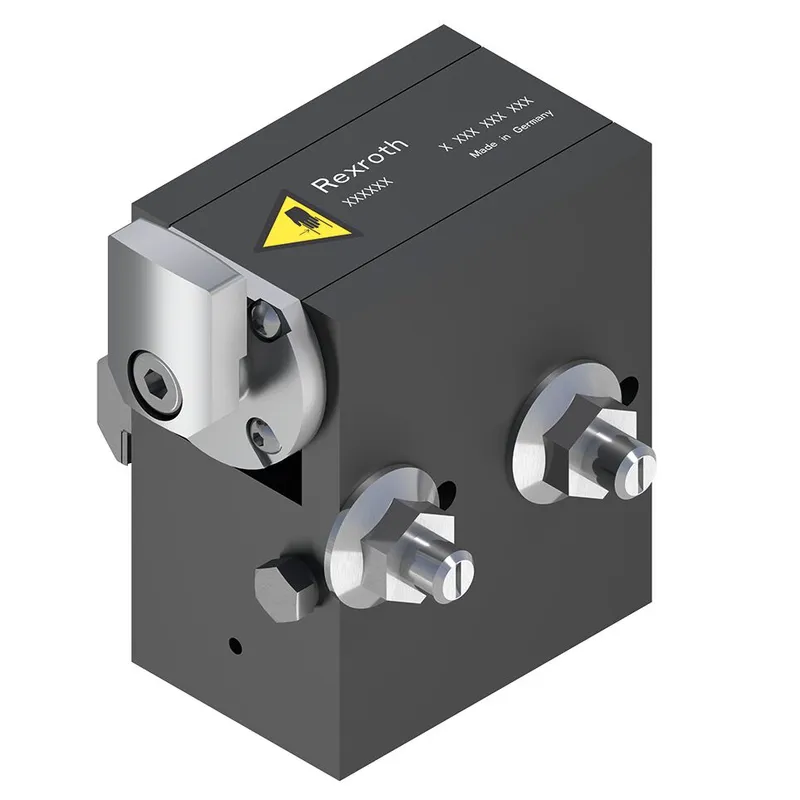

What is the Bosch Rexroth 3842547785?
Dampened stopping of the first accumulating workpiece pallet
Pneumatic stop gate
Optimum damping with workpiece pallet overall weights of up to 60 kg
Infinitely adjustable damping
Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)
Suitable for use in an EPA
The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface
When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

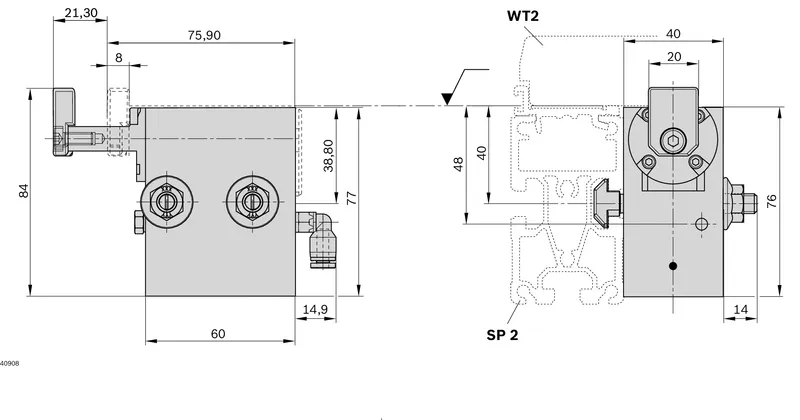

Mounted inside the tracks, directly on the conveyor section
Specifications
Specifications
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Operating temperature [T] max | +5 ... +60 °C |
| Workpiece pallet total weight [mG] [kg] | 60 |
| Pneumatic straight connection [Ø] [mm] | 4 |
| Scope of delivery | Incl. fastening material for assembly on the conveyor section ST 2/...; Pneumatic elements |
| Delivery information | Fully assembled |
| Notice | High-temperature stop gate on request |
| Material information | Housing: Aluminum, hard anodized; Stop cam: Steel, hardened |
| Min. workpiece pallet weight m | 1 kg |

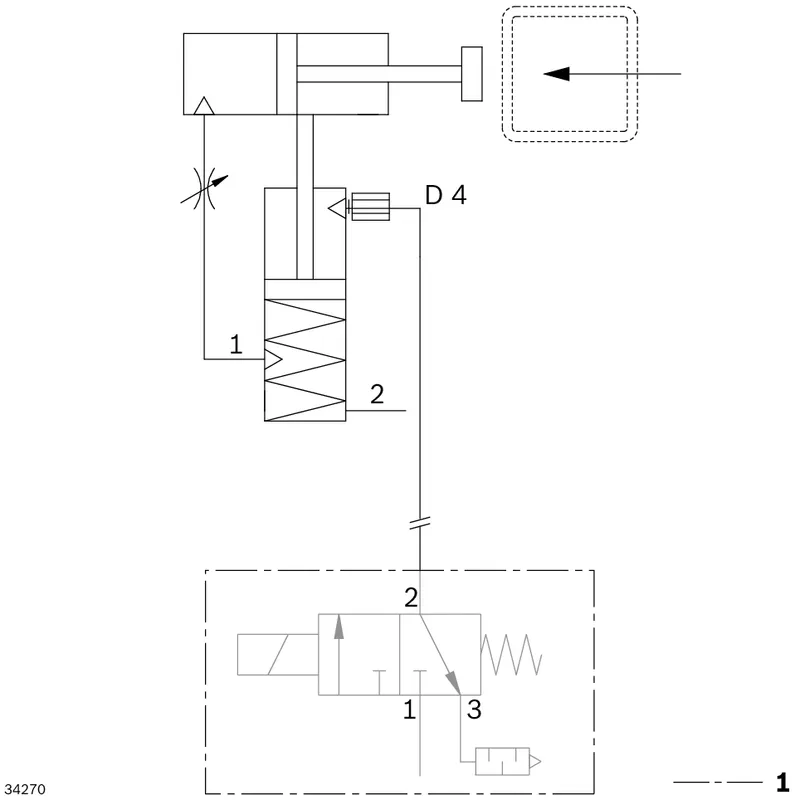

| Pneumatic circuit diagram | 1 Not included in the scope of delivery |

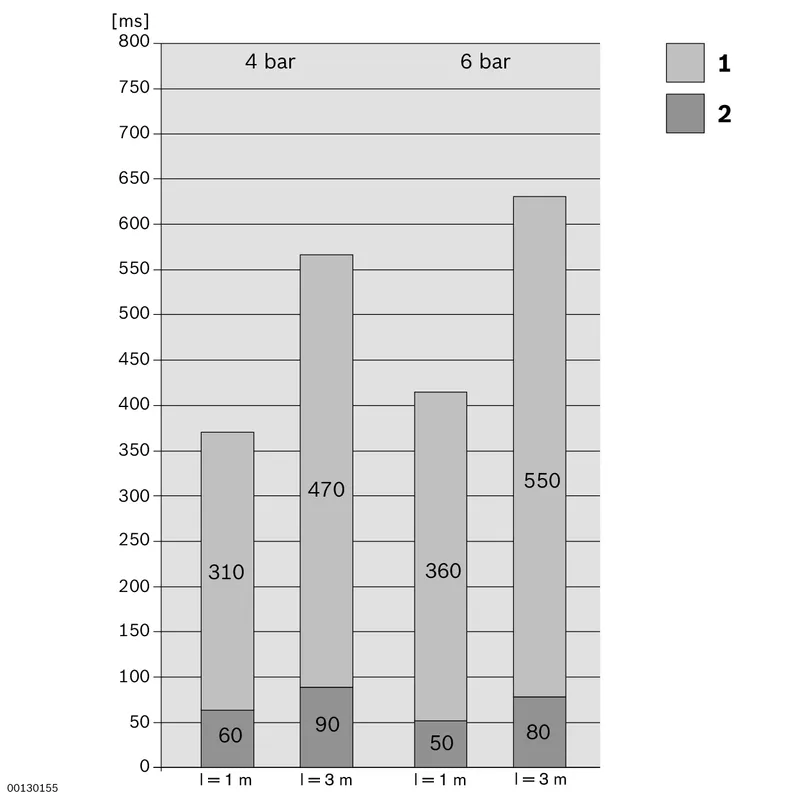

| Opening/shutting times | 1 Close; 2 Open at 4 bar; l = Hose length |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min | 60 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min | 40 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min | 35 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min | 30 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min | 30 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 24 m/min | 24 kg |
| Recommended accessories | VE 2/RS Return Stop |
| Weight [kg] | 0.55 |
