Bosch Rexroth 3842547770

STOP GATE VE 2/X 95X50X98

MPN: 3842547770
Category: Stop gate TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

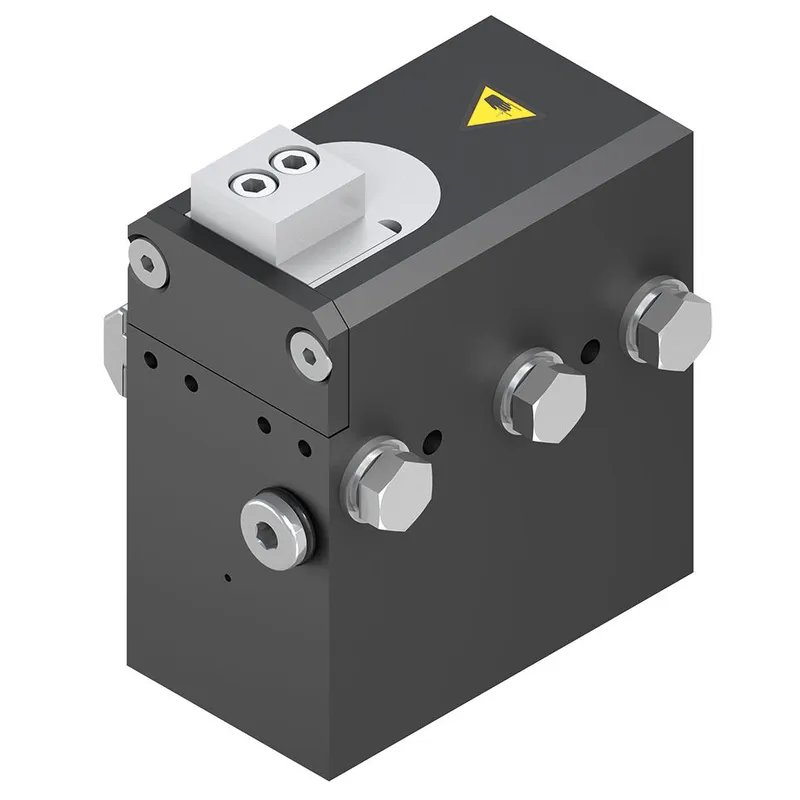

What is the Bosch Rexroth 3842547770?

VE 2/X Stop Gate

Pneumatic stop gate

For high permitted total weight of the workpiece pallet up to 450 kg

Can be combined with WT 2 and WT 2/F

Combination with WT 2/LS not possible

Stops one or more accumulating workpiece pallets at the defined stop surface

When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

Mounted inside the tracks, directly on the conveyor section

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	450
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section
Delivery information	Fully assembled
Notice	High-temperature stop gate on request
Material information	Housing: Aluminum, hard anodized; Stop cam: Steel, hardened

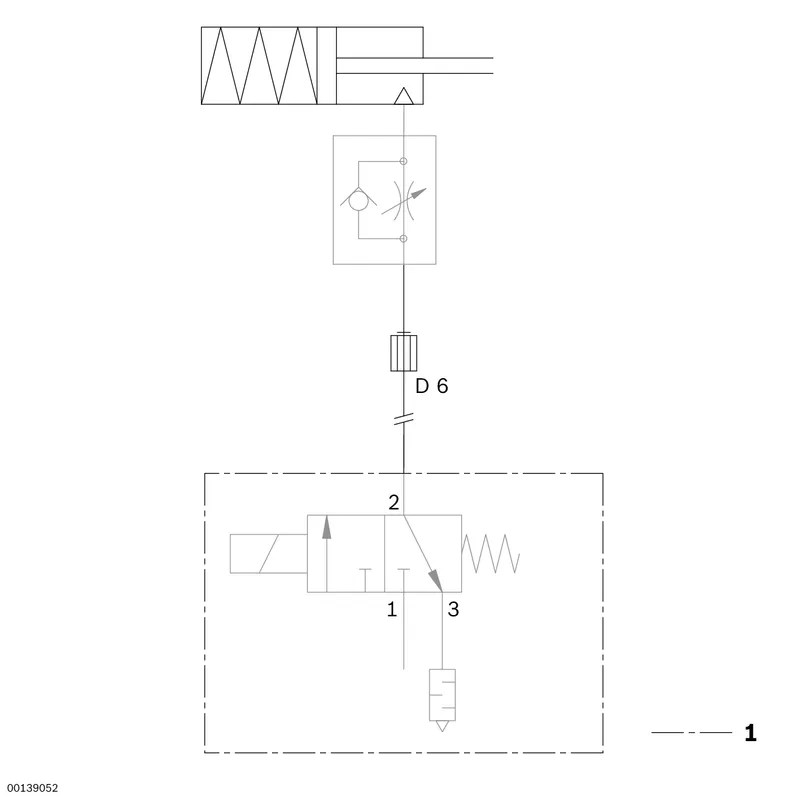

Pneumatic circuit diagram	1 Not included in the scope of delivery

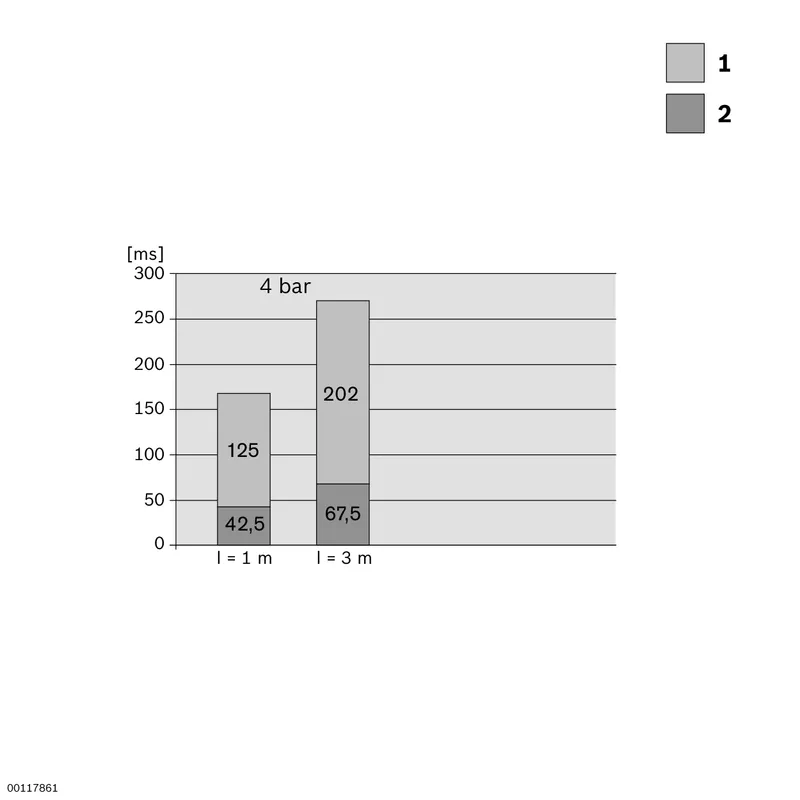

Opening/shutting times	1 Close; 2 Open at 4 bar; l = Hose length
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	450 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	300 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	220 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	140 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	100 kg
Recommended accessories	Switch bracket SH 2/...; VE 2/RS Return Stop
Weight [kg]	1.57
