Bosch Rexroth 3842547758
STOP GATE VE 1/D
- MPN
- 3842547758
- Category
- Pneumatic stop gate TS 1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

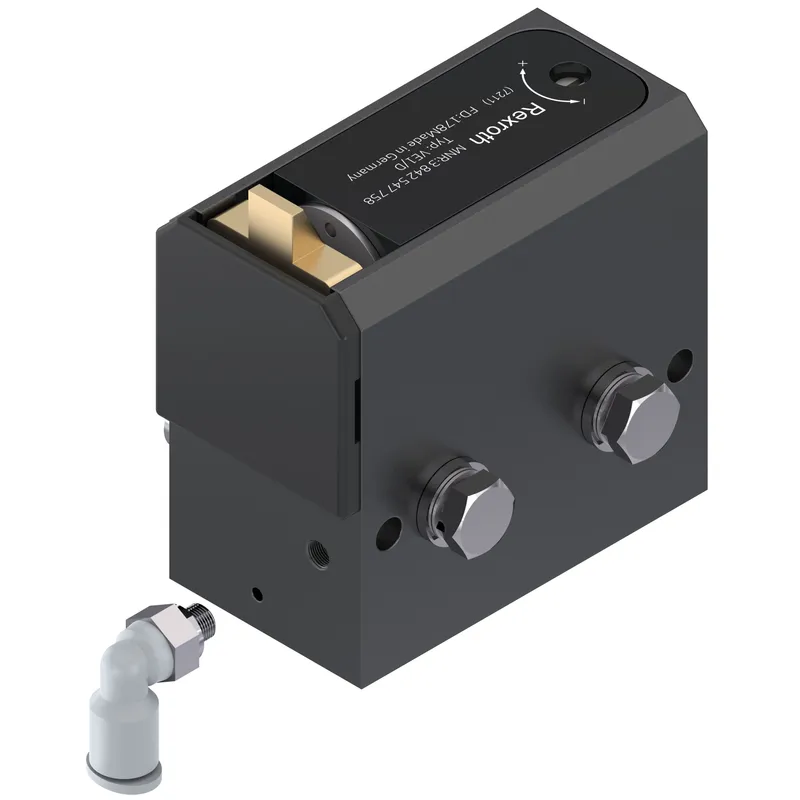

What is the Bosch Rexroth 3842547758?
Stop gate VE 1/D
Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.
Pneumatic damping can be adapted to the workpiece pallet weight
Workpiece pallet minimum weight: 0.5 kg
Permissible total load of all workpiece pallets in the accumulation: 12 kg (with conveying speed 6 m/min)
Specifications
Specifications
| Dry room [%rF] | <1 |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Section load in accumulation operation [kg] | 12 |
| Nominal speed [vN] | 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Pneumatic straight connection [Ø] [mm] | 4 |
| Workpiece pallet total weight [mG] [kg] | 10; 12; 8 |
| Scope of delivery | Incl. fastening material for assembly on conveyor section; Pneumatic elbow fitting (pushlock type) |
| Delivery information | Fully assembled |
| Clean room classification | ISO class 7 |
| Required accessories | Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min |
| Recommended accessories | Switch Bracket |
| Weight [kg] | 0.45 |
3842547758: frequently asked questions
When can 3842547758 be shipped?
3842547758 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842547758 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842547758 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547758, subject to availability and destination.
