Stop gate TS 2plus Parts
Compare Stop gate TS 2plus
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Workpiece pallet total weight [mG] [kg] | Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min | Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min | Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min | Weight [kg] |
|---|---|---|---|---|---|

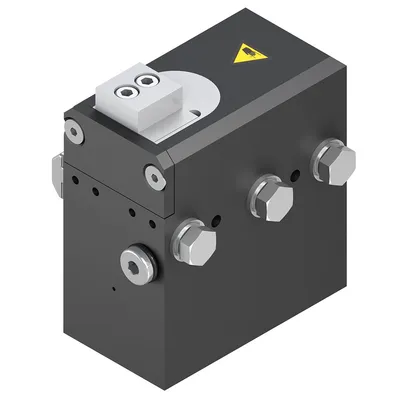

| 3842547770 | 450 | 450 kg | 300 kg | 220 kg | 1.57 |

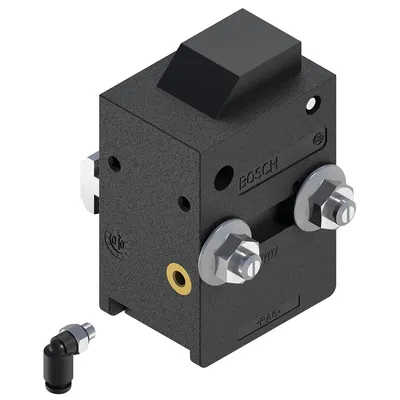

| 3842515844 | 140 | 140 kg | 90 kg | 70 kg | 0.38 |

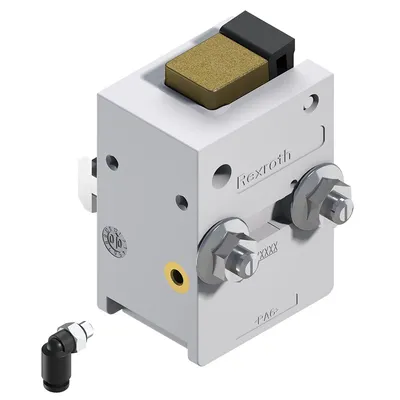

| 3842531610 | 200 | 200 kg | 140 kg | 100 kg | 0.35 |
| 3842530630 | 200 | 200 kg | 140 kg | 100 kg | 0.35 |
| 0842900300 | 200 | 200 kg | 140 kg | 100 kg | 0.43 |
Common to all listed parts
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Operating temperature [T] max | +5 ... +60 °C |
| Delivery information | Fully assembled |
| Notice | High-temperature stop gate on request |
