Bosch Rexroth

Bosch Rexroth 3842545092

BASE BODY WT5 / 845X845

MPN: 3842545092
Category: Base body

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842545092?

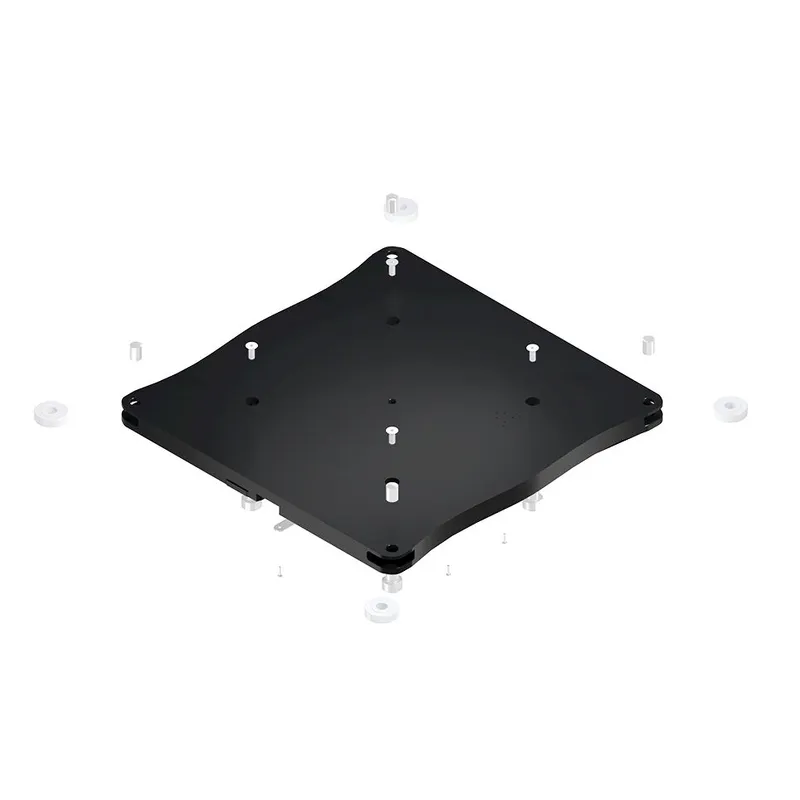

Base body WT 5, 845/845

The base pallet is the interface between the transfer system and the carrying plate with workpiece fixtures

The base pallet is designed to deal with the highest loads

6 standard sizes

Optimized contours for easier movement through curves

Stop gate stop on interior and exterior of the workpiece pallet surface (in the longitudinal conveyor direction)

Can be combined with mobile data tags from the ID 200 RFID system

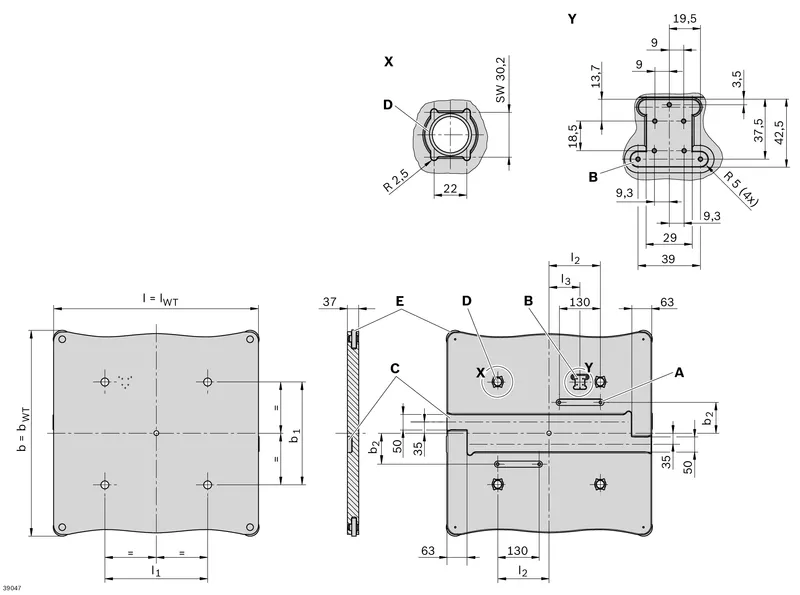

Specifications

Length [l1] [mm]	520
Length [l2] [mm]	260

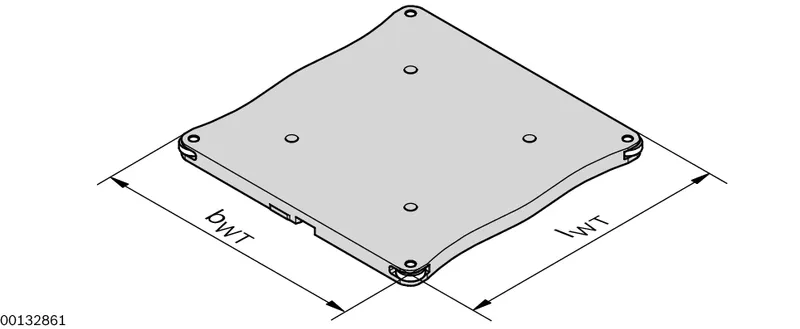

Workpiece pallet length [lWT] [mm]	845
Weight workpiece pallet [mWT] [kg]	23.2
Length [l3] [mm]	65
Delivery information	Not assembled, attachment kit available, without carrying plate
Material	PE-UHMW, ESD-compatible
Workpiece pallet width [bWT] [mm]	845
Dimension [b1] [mm]	520
Dimension [b2] [mm]	97.5
Required accessories	Attachment kit incl. rollers, roller pins, damping elements and sensor plates
Recommended accessories	Carrying plate; Positioning bushing kit
Weight [kg]	20.64
