Bosch Rexroth 3842545086

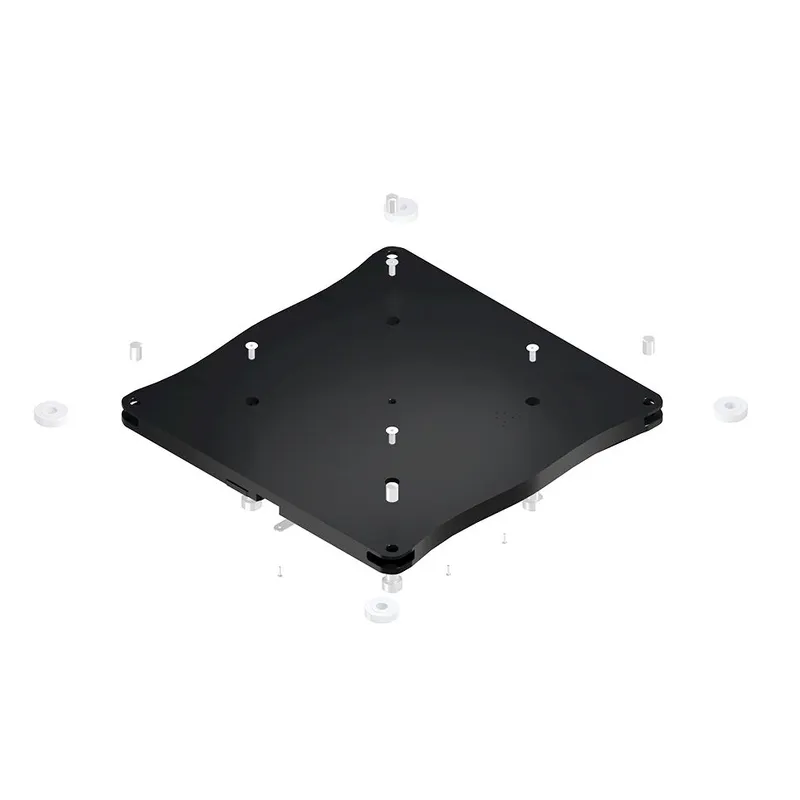

BASE BODY WT5 / 650X650X37

MPN: 3842545086
Category: Base body

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842545086?

Base body WT 5, 650/650

The base pallet is the interface between the transfer system and the carrying plate with workpiece fixtures

The base pallet is designed to deal with the highest loads

6 standard sizes

Optimized contours for easier movement through curves

Stop gate stop on interior and exterior of the workpiece pallet surface (in the longitudinal conveyor direction)

Can be combined with mobile data tags from the ID 200 RFID system

Specifications

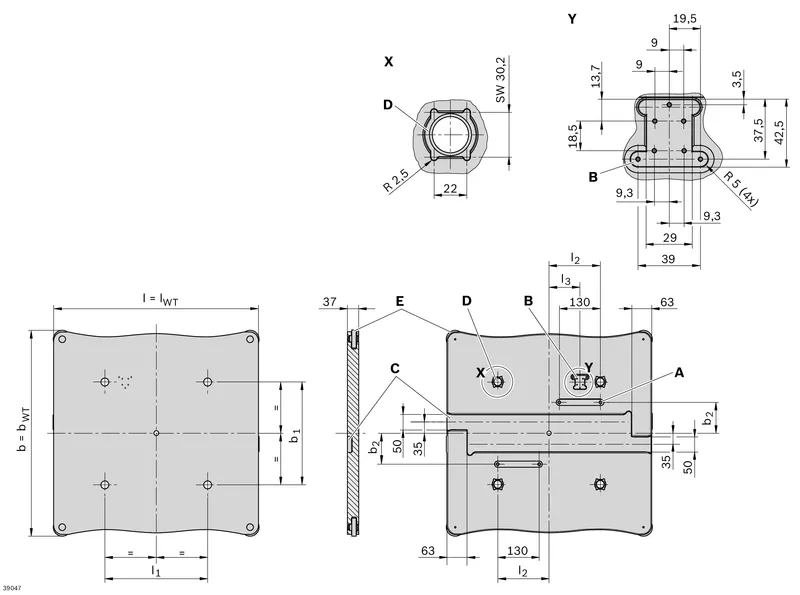

Length [l1] [mm]	325
Length [l2] [mm]	162.5

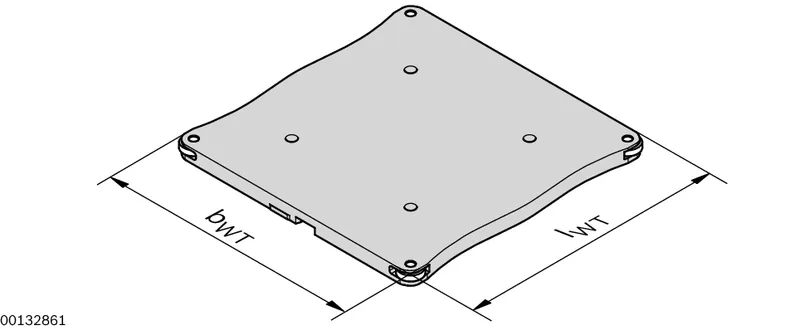

Workpiece pallet length [lWT] [mm]	650
Weight workpiece pallet [mWT] [kg]	13.5
Length [l3] [mm]	97.5
Delivery information	Not assembled, attachment kit available, without carrying plate
Material	PE-UHMW, ESD-compatible
Workpiece pallet width [bWT] [mm]	650
Dimension [b1] [mm]	325
Dimension [b2] [mm]	97.5
Required accessories	Attachment kit incl. rollers, roller pins, damping elements and sensor plates
Recommended accessories	Carrying plate; Positioning bushing kit
Weight [kg]	12.23
