Bosch Rexroth 3842543324

HINGE AL 40/30 LIFTOFF, L

MPN: 3842543324
Category: Hinge

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842543324?

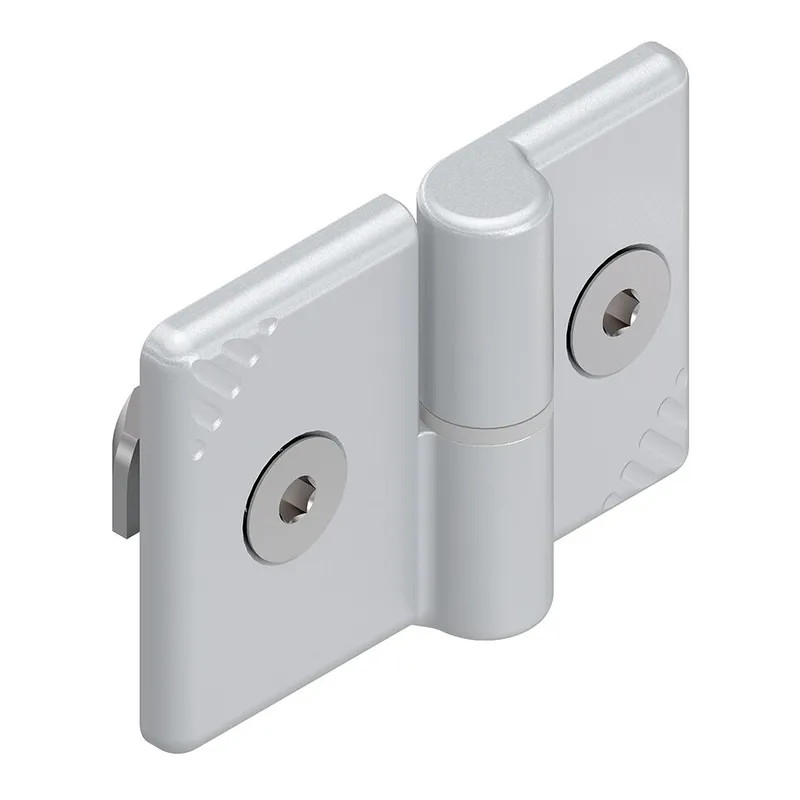

Hinge, LIFTOFF left P1=30 P2=40

Compact, removable hinge for doors which open to the right or left

Version designLINE with special silver paint (RAL 9006) for an especially high-quality design

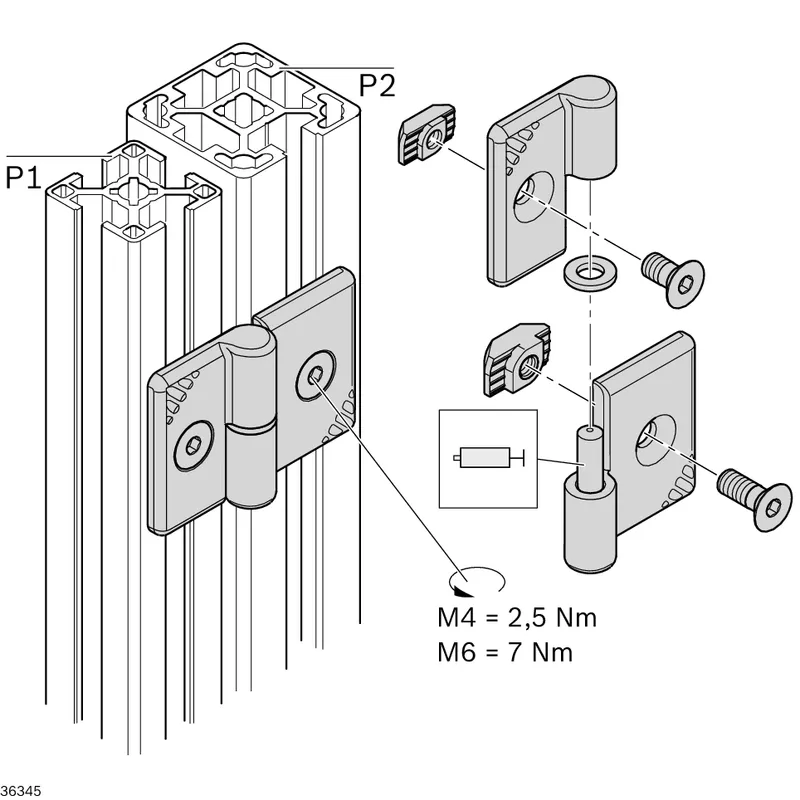

Centering lugs as an assembly aid and anti-torsion element

Specifications

Profile slot	10; 8
ESD	Yes
Hinge type	detachable
designLINE	Yes
Packaging unit	2

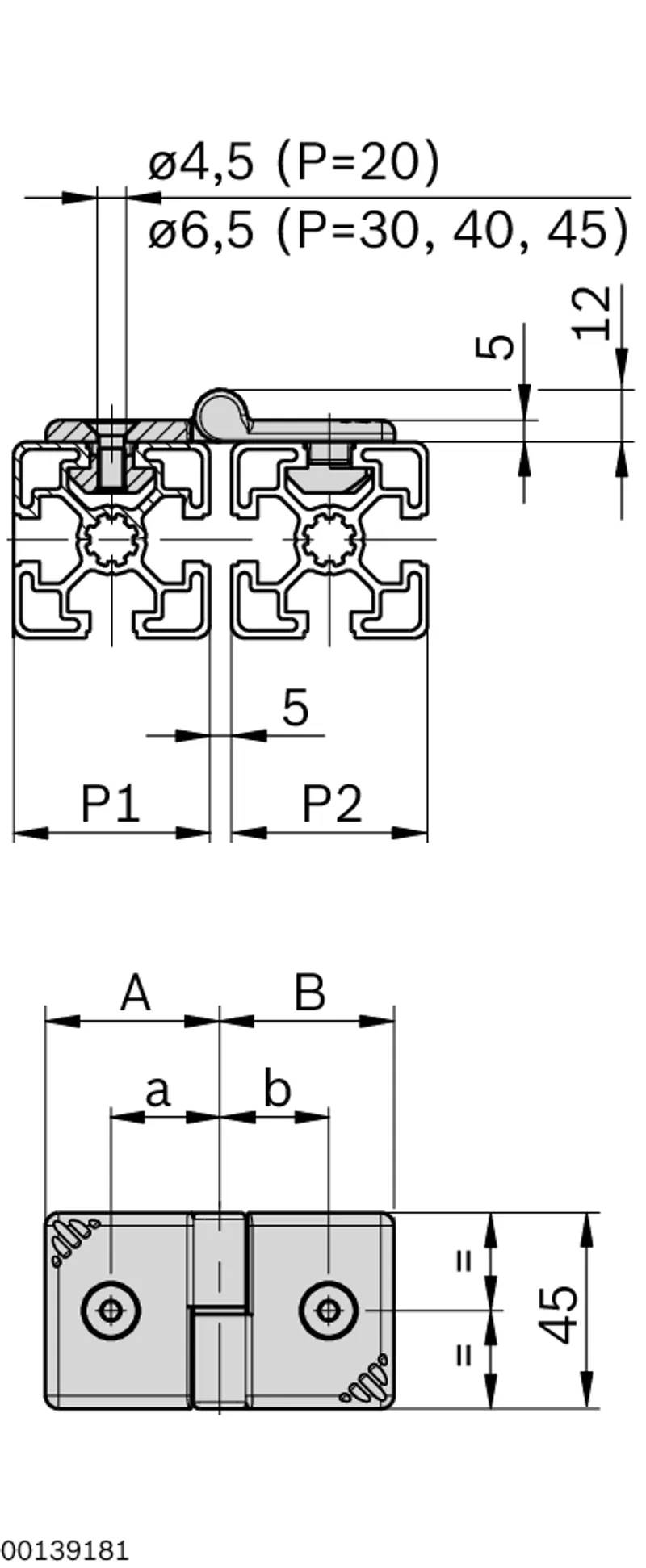

Dimension A [mm] [mm]	28
Force [Fmax] [N]	300.0
Dimension B [mm] [mm]	37
Dimension b [mm]	22.5
Profile P1 [mm]	30
Profile P2 [mm]	40
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized; Grooved pin: Steel, galvanized; Hinge: Diecast aluminum, painted; Washer: PA
Material	Diecast aluminum
Fastening material	1x T-nut groove 10 M6; 1x T-nut groove 8 M6; 1x countersunk screw DIN7991-M6x12; 1x countersunk screw DIN7991-M6x16; 1x washer DIN125-A6.4
Dimension a [mm] [mm]	17.5
Weight [kg]	0.07
