Bosch Rexroth 3842543328
HINGE AL 45/45 LIFTOFF, R
- MPN
- 3842543328
- Category
- Hinge
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

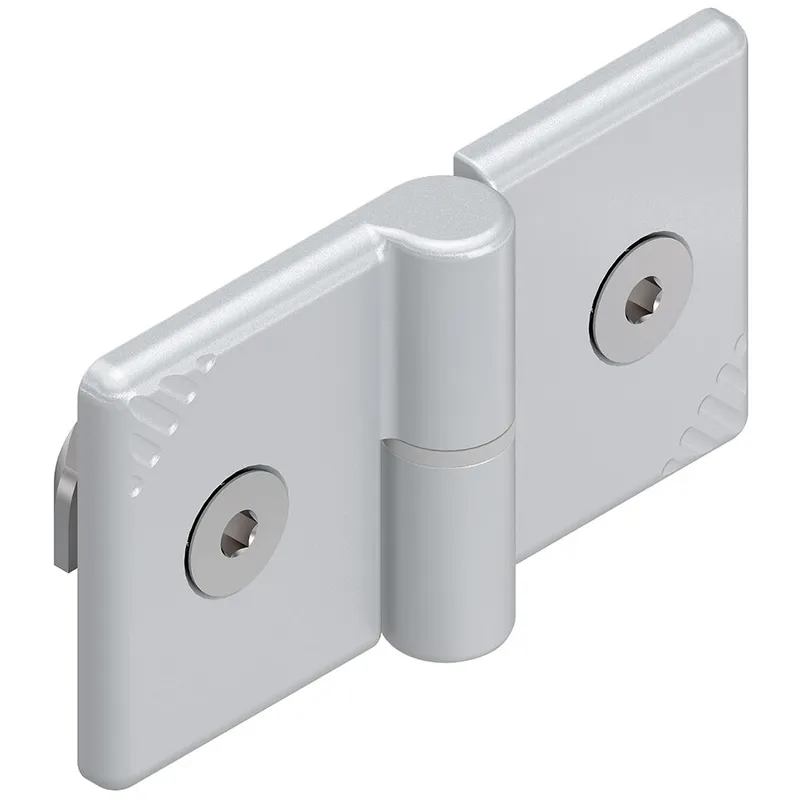

What is the Bosch Rexroth 3842543328?
Hinge, LIFTOFF right P1=45 P2=45

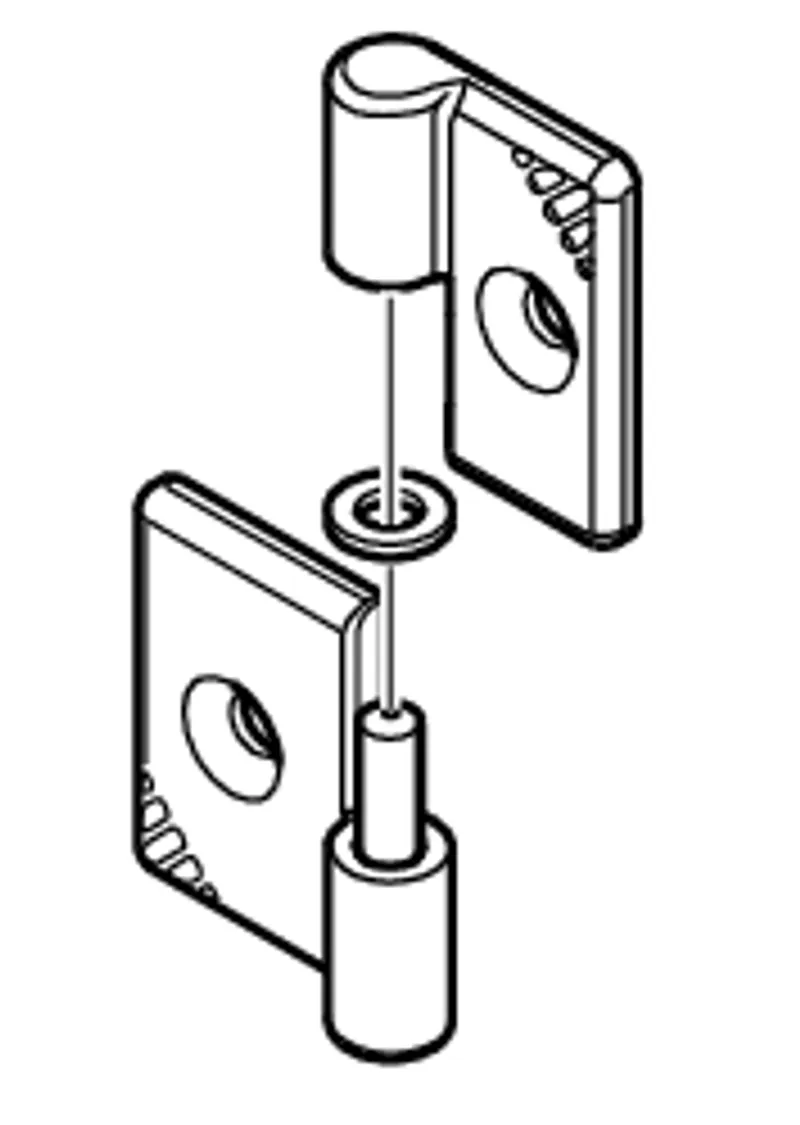

Compact, removable hinge for doors which open to the right or left
Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
Centering lugs as an assembly aid and anti-torsion element

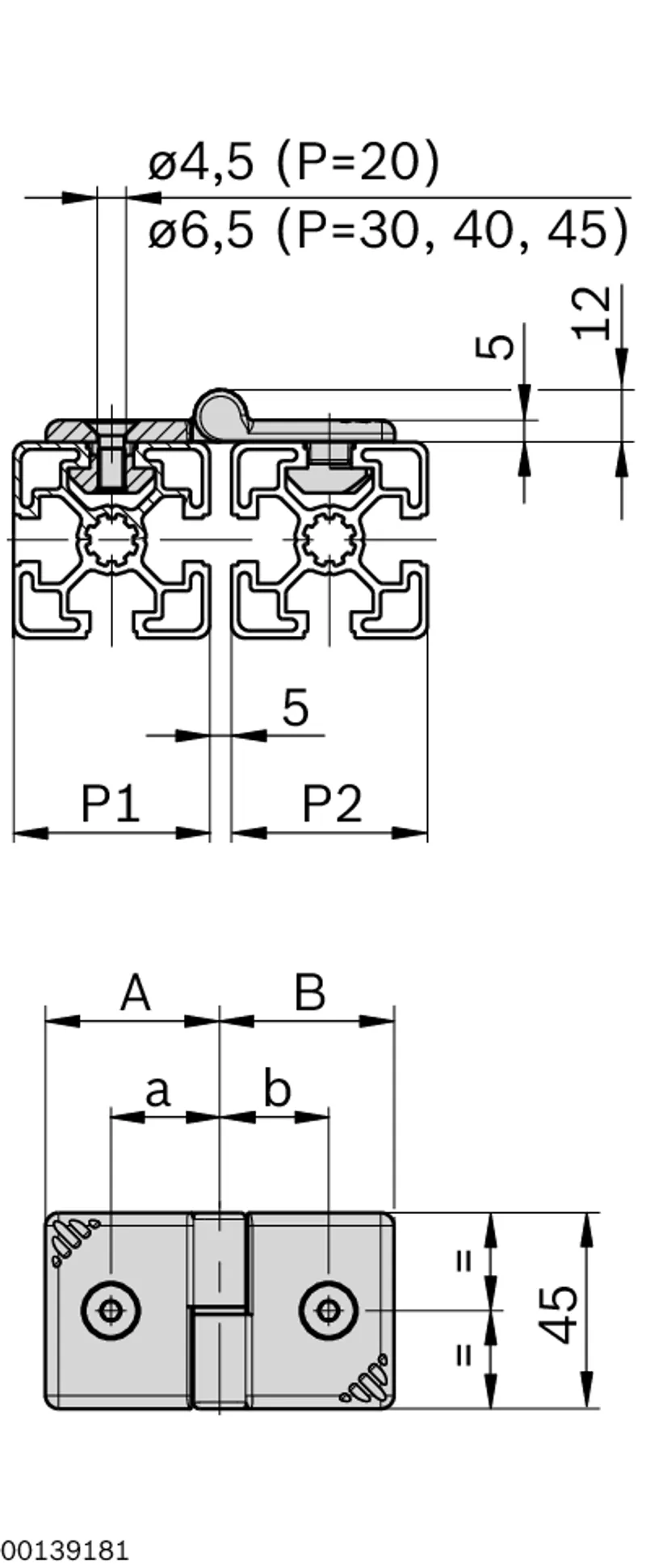

Specifications
Specifications
| Profile slot | 10 |
| ESD | Yes |
| Hinge type | detachable |
| designLINE | Yes |
| Packaging unit | 2 |
| Dimension A [mm] [mm] | 40 |
| Force [Fmax] [N] | 300.0 |
| Dimension B [mm] [mm] | 40 |
| Dimension b [mm] | 25.0 |
| Profile P1 [mm] | 45 |
| Profile P2 [mm] | 45 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Grooved pin: Steel, galvanized; Hinge: Diecast aluminum, painted; Washer: PA |
| Material | Diecast aluminum |

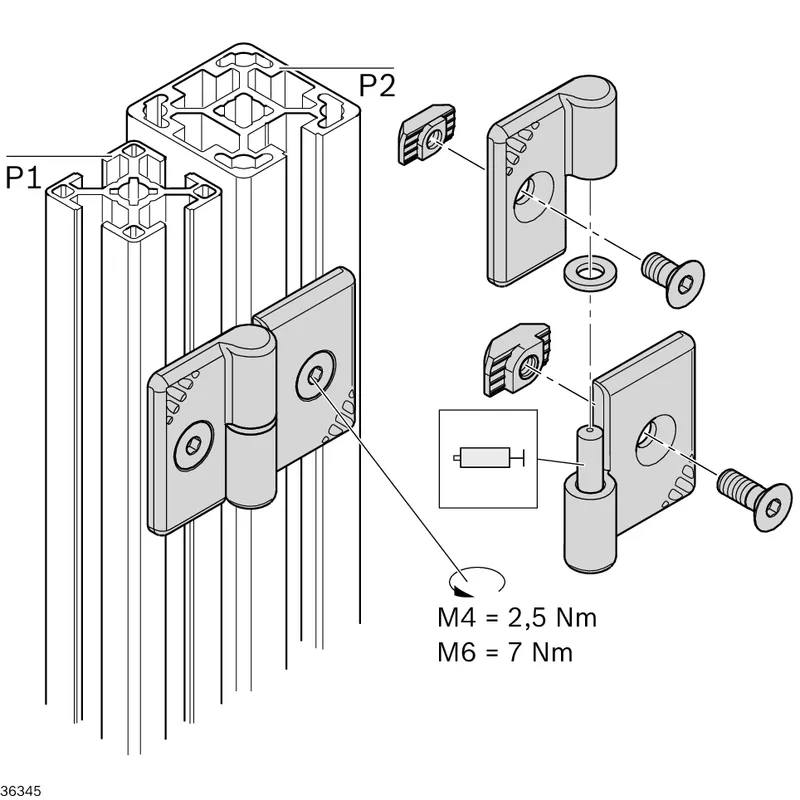

| Fastening material | 1x washer DIN125-A6.4; 2x T-nut groove 10 M6; 2x countersunk screw DIN7991-M6X16 |
| Dimension a [mm] [mm] | 25.0 |
| Weight [kg] | 0.08 |
3842543328: frequently asked questions
When can 3842543328 be shipped?
3842543328 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842543328 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842543328 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842543328, subject to availability and destination.
