Bosch Rexroth 3842543322
HINGE AL 40/40 LIFTOFF, L
- MPN
- 3842543322
- Category
- Hinge
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

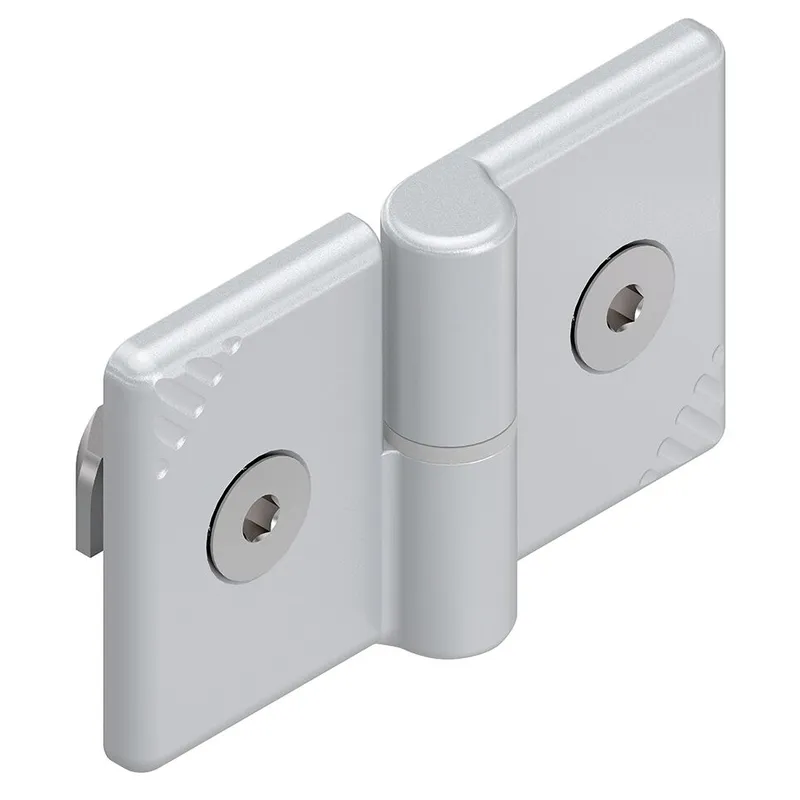

What is the Bosch Rexroth 3842543322?
Hinge, LIFTOFF left P1=40 P2=40
Compact, removable hinge for doors which open to the right or left
Version designLINE with special silver paint (RAL 9006) for an especially high-quality design
Centering lugs as an assembly aid and anti-torsion element

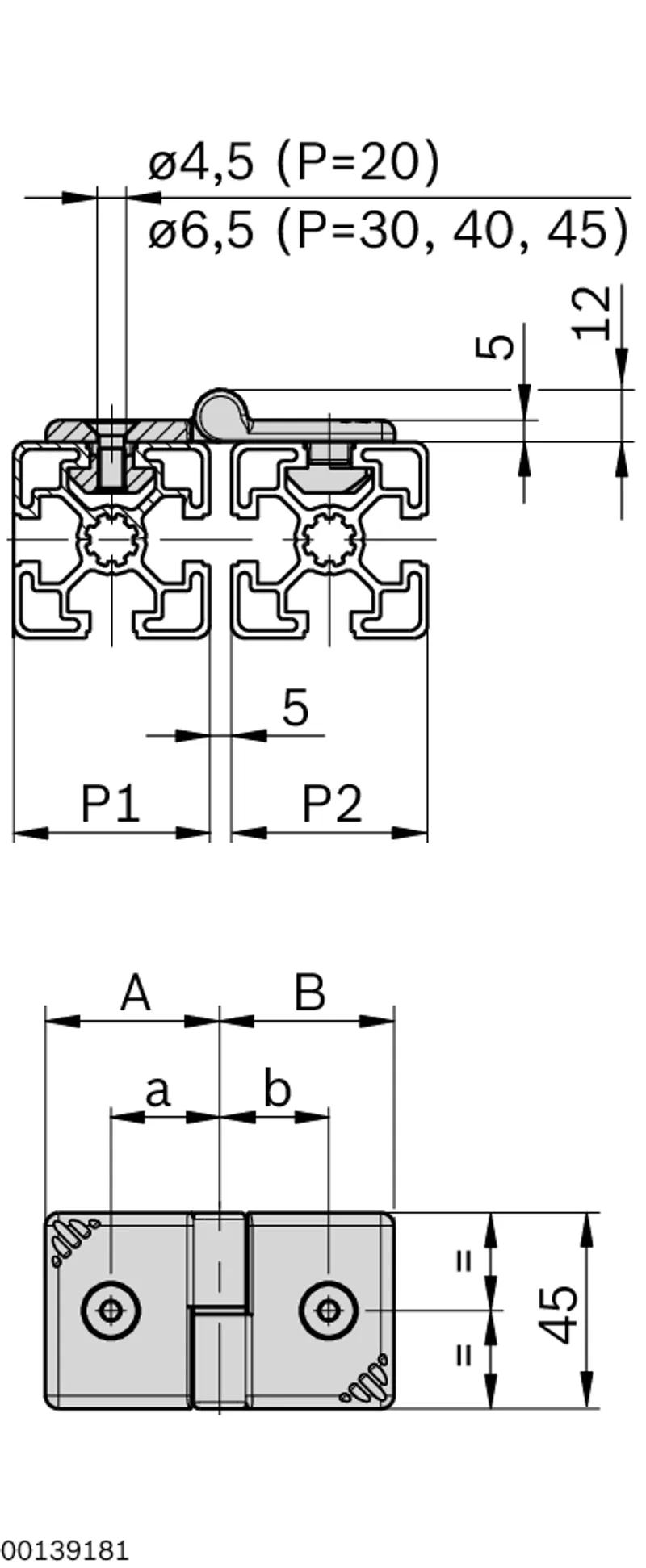

Specifications
Specifications
| Profile slot | 10 |
| ESD | Yes |
| Hinge type | detachable |
| designLINE | Yes |
| Packaging unit | 2 |
| Dimension A [mm] [mm] | 37 |
| Force [Fmax] [N] | 300.0 |
| Dimension B [mm] [mm] | 37 |
| Dimension b [mm] | 22.5 |
| Profile P1 [mm] | 40 |
| Profile P2 [mm] | 40 |
| Scope of delivery | Incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Grooved pin: Steel, galvanized; Hinge: Diecast aluminum, painted; Washer: PA |
| Material | Diecast aluminum |
| Fastening material | 1x washer DIN125-A6.4; 2x T-nut groove 10 M6; 2x countersunk screw DIN7991-M6X16 |
| Dimension a [mm] [mm] | 22.5 |
| Weight [kg] | 0.08 |
