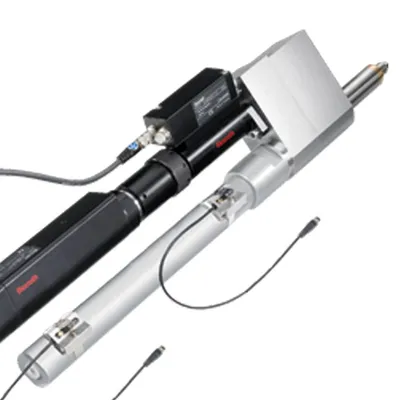

Feed output drive Parts
Compare Feed output drive
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order number | Code | Working range (max.) [Nm] | Weight [kg] | Maximum torque [Nm] |
|---|---|---|---|---|---|
| 0608800650 | 0608800650 | 4S1M8 | 138.0 | 6.6; 7.15 | 150.0 |
| 0608800649 | 0608800649 | 3S2M8 | 20.0 | 3.5; 5 | 20.0 |
| 0608800648 | 0608800648 | 3S1M8 | 55.0 | 3.5; 4.95 | 55.0 |
| 0608800647 | 0608800647 | 2S2M8 | 7.0 | 2.0; 2.35 | 7.0 |
| 0608800646 | 0608800646 | 2S1M8 | 10.0 | 2.0; 2.25 | 10.0 |
Common to all listed parts
| Maximum air pressure [bar] | 4.0 |
| Reduction ratio | 1 |
