Bosch Rexroth 0608800649

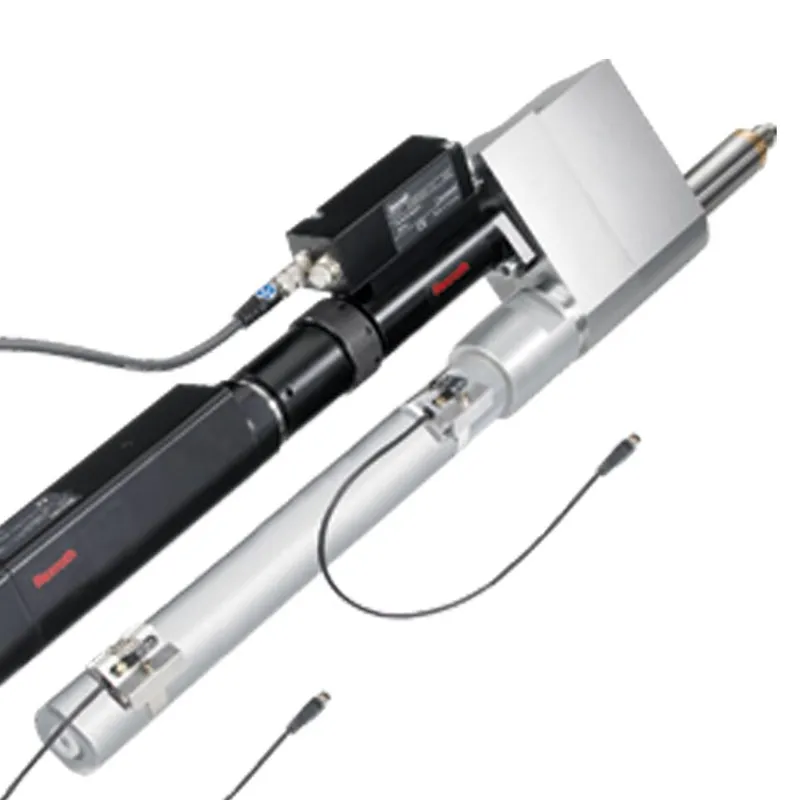

FEED OUTPUT DRIVE 3S2M8 SZ3 1/4SQ
- MPN
- 0608800649
- Category
- Feed output drive
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 0608800649?
Working range 1.7-55 Nm
Max. output speed: 740 1/min
Integrated infeed movement
In connection with automatic bolt feed
Standard tool mounts and compressed air connections
Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 3 |
| Working range (max.) [Nm] | 20.0 |
| Working range (min) [Nm] | 5.3 |
| Maximum drive speed (1/min) [min⁻¹] | 295.0 |
| Tool mount | 1/4" square |
| Weight [kg] | 3.5; 5 |
| Typical efficiency | 0.93 |
| Maximum torque [Nm] | 20.0 |
| Length A | 97 |
| Installation length | 204.0 |
| Reduction ratio | 1 |
| Stroke [mm] | 200 |
| Maximum air pressure [bar] | 4.0 |
| Order number | 0608800649 |
| Code | 3S2M8 |
0608800649: frequently asked questions
When can 0608800649 be shipped?
0608800649 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608800649 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608800649 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800649, subject to availability and destination.
