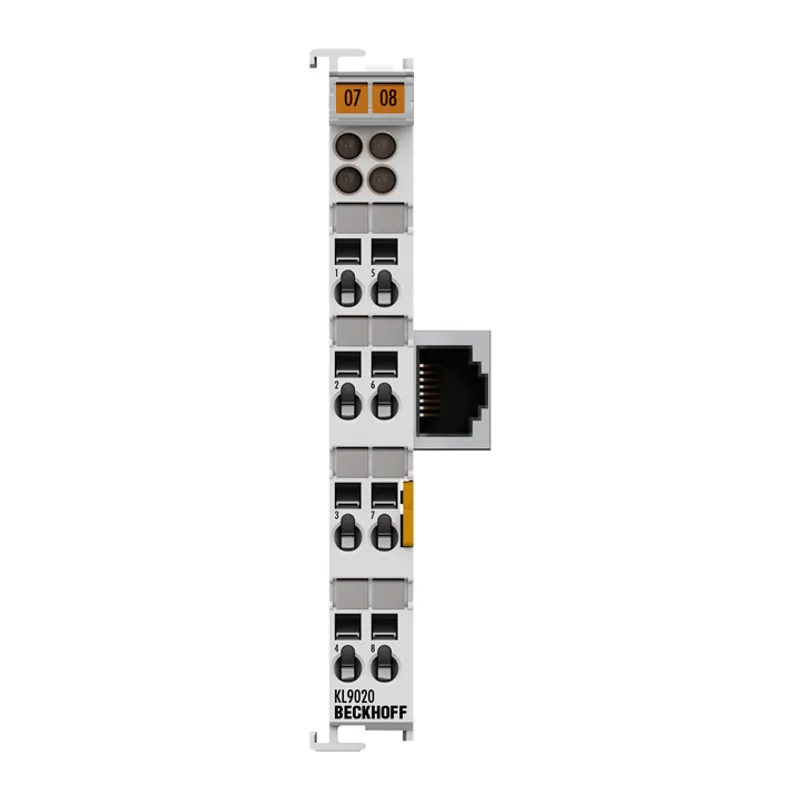

Beckhoff KL9020

Terminal bus extension, end terminal

MPN: KL9020
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9020?

The KL9020 is attached to the end of the Bus Terminal block in the same way as the standard terminal KL9010 and terminates the terminal block. The KL9020 enables the connection of an Ethernet cable with a RJ45 plug. The K-bus signals are converted to

Specifications

Current load	–
Power LED	–
Defect LED	–
Type/number of peripheral signals	Bus Coupler dependency
Max. number of bytes fieldbus	Bus Coupler dependency
Distance between stations	max. 5 m between KL9020 and KL9050
Bus interface	1 x RJ45 socket
Starting current	–
Current consumption K-bus	typ. 70 mA
Current supply K-bus	–
Power contacts	max. 24 V DC/max. 10 A
Nominal voltage	–
Electrical isolation	500 V (power contact/supply voltage/K-bus)
Shield connection	–
Electrical connection to DIN rail	–
Configuration	none, automatic
Special features	end terminal for K-bus extension, up to 31 KL9050
Weight	approx. 45 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
