Beckhoff KL8524

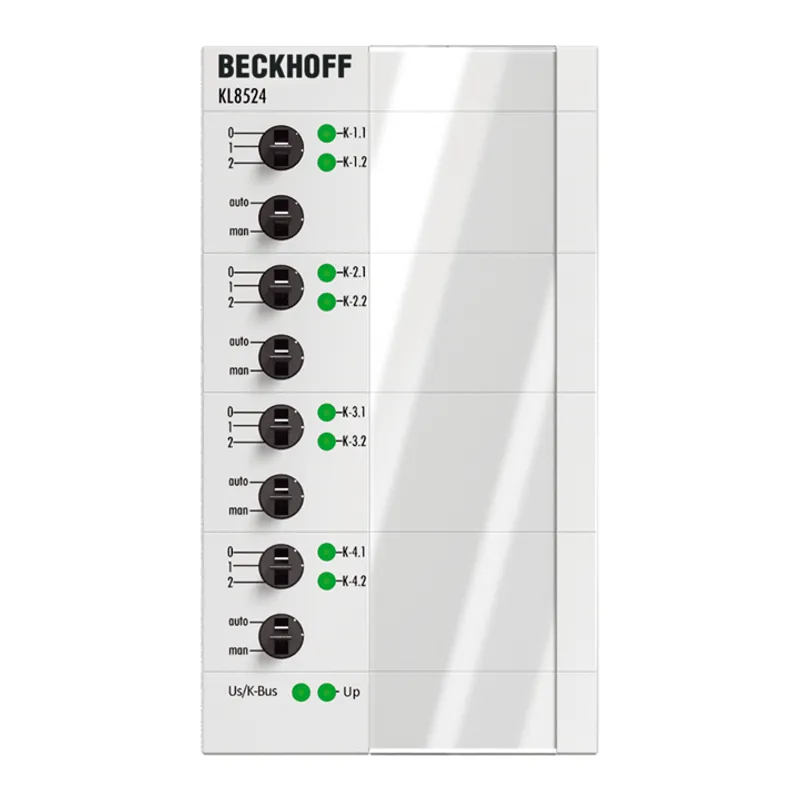

4 x 2-channel digital output module

MPN: KL8524
Category: KL85xx | Manual operating

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL8524?

The KL8524 is a 4 x 2-channel digital output module, equipped with two switches. The first is for switching between manual and automatic operation, while the second is used to set a 2-stage output. It is possible to specify when and how the two outputs

Specifications

Number of outputs	2 x 4
Output current	0.5 A (∑ 2 A)
Nominal voltage	24 V DC (-15%/+20%)
Current consumption K-bus	40 mA
Power supply	24 V connection
Bus interface	K-bus connection IN/OUT
I/O connection	flat-ribbon cable connection, 20-pin, shielded
Switch settings	auto/manual, mode 0/1/2
Diagnostics LED	bicolor LEDs, green and yellow
Special features	State of the switch can be read by the controller.
Weight	approx. 160 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
