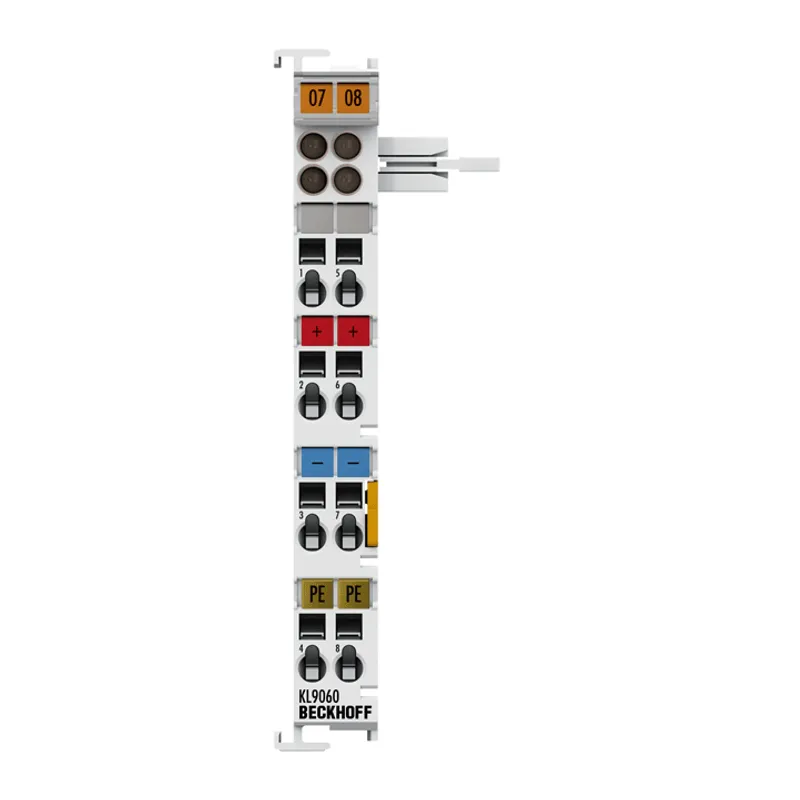

Beckhoff KL9060

Adapter terminal for KL8001 power terminals

MPN: KL9060
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original KL9060 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9060?

The KL9060 adapter terminal is attached to the end of the Bus Terminal block in the same way as the standard terminal KL9010. The block is terminated with the KL9060 and provides the opportunity to connect one or more power terminals of the KL8001

Beckhoff KL9060 — Adapter terminal for KL8001 power terminals. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

Lifecycle	Service phase (discontinued, no longer in Beckhoff's product range)
Current load	≤ 10 A
Power LED	–
Defect LED	–
Connection type	1 x 10-pin ribbon cable connector
Distance between stations	–
Starting current	–
Current consumption K-bus	–
Current supply K-bus	–
Power contacts	24 V DC (-15%/+20%)/max. 1.4 A, short-circuit proof
Nominal voltage	24 V DC (-15%/+20%)
Electrical isolation	500 V (power contact/supply voltage/K-bus)
Shield connection	–
Bit width in the process image	–
Electrical connection to DIN rail	–
Configuration	none, automatic
Special features	connection to KL8001 via 20-pin flat ribbon plug
Weight	approx. 65 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE

KL9060: frequently asked questions

Can I still buy the KL9060 now that it is discontinued?

Yes. Beckhoff has discontinued the KL9060, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can KL9060 be shipped?

KL9060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up KL9060 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for KL9060 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KL9060, subject to availability and destination.
