Beckhoff KL8519

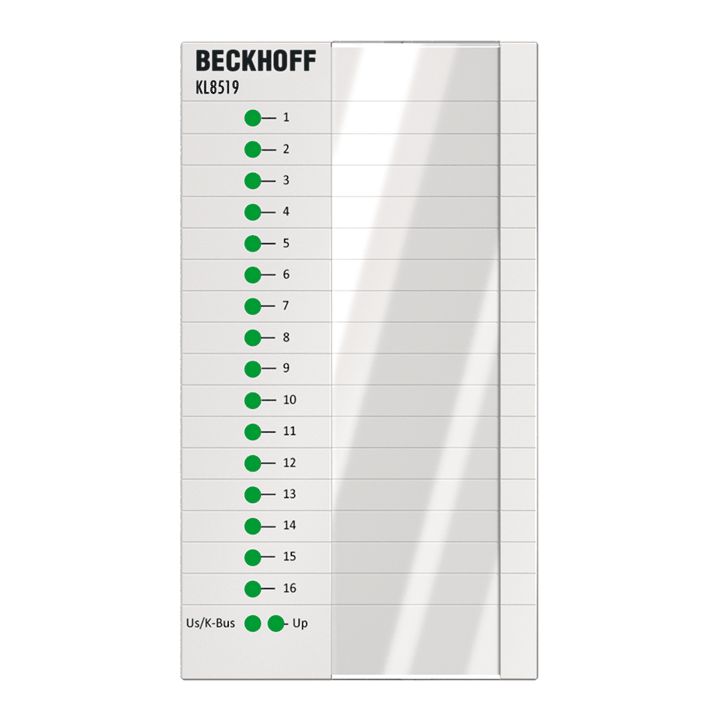

16-channel digital input signal module

MPN: KL8519
Category: KL85xx | Manual operating

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL8519?

The KL8519 is a 16-channel digital input signal module. 16 digital inputs can be connected, which indicate their status via LEDs and transmit the data to the controller. The LEDs are bicolor LEDs in the colors red and green and can be parameterized

Specifications

Number of inputs	16
Input filter	3.0 ms
Signal voltage	–
Resolution	–
Nominal voltage	24 V DC (-15%/+20%)
Current consumption K-bus	50 mA
Power supply	24 V connection
Bus interface	K-bus connection IN/OUT
I/O connection	flat-ribbon cable connection, 20-pin, shielded
Diagnostics LED	bicolor LEDs, green and red
Weight	approx. 150 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
