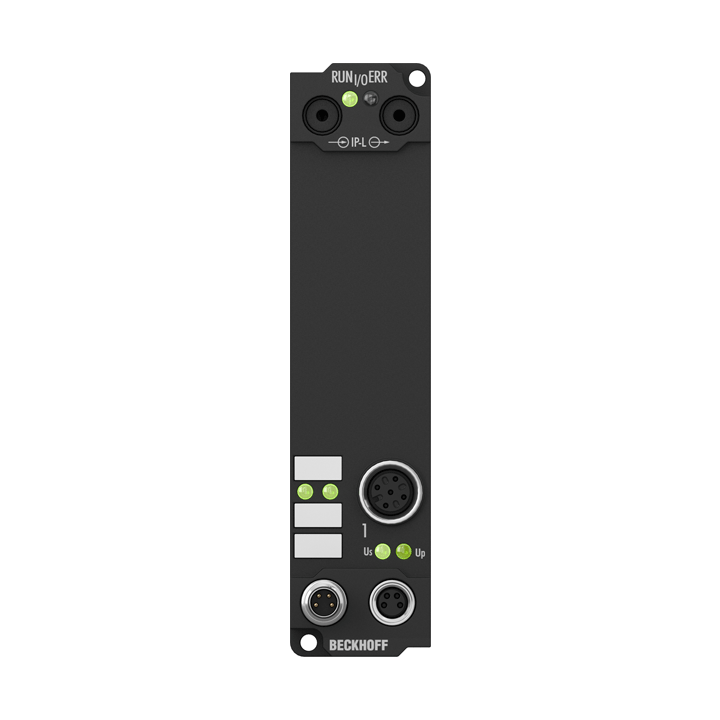

Beckhoff IE6002
Extension Box, 2-channel communication interface, serial, RS232, M12
- MPN
- IE6002
- Category
- Kommunikation IE6xxx
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff IE6002?
The IE6002 serial interface module allows the connection of devices with an RS232 interface, which operates in conformity with the CCITT V.28/DIN 66 259-1 standards. The module transmits the data in a fully transparent manner to the higher-level
Specifications
Specifications
| Data transfer channels | 2 (1/1), TxD and RxD |
| Data transfer rates | 1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset |
| Connection method | M12, screw type |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Bit transfer | RS232 (EIA-232) |
| Bit distortion | 3% |
| Cable length | max. 15 m |
| “0” signal voltage | -18…+3 V |
| “1” signal voltage | 3…18 V |
| Data buffer | 128 bytes receive buffer, 16 bytes transmit buffer |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Current consumption from US (without sensor current) | 40 mA |
| Bit width in the process image | input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible) |
| Electrical isolation | RS232/control voltage: 500 V, to the fieldbus: yes, via IP-Link |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
