Beckhoff IE5009

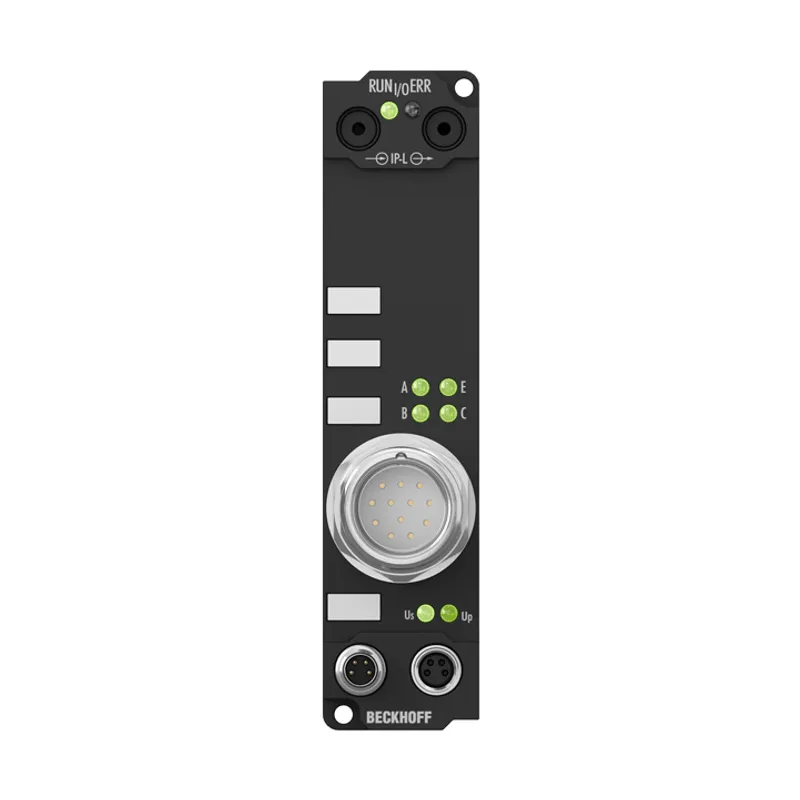

Extension Box, 1-channel encoder interface, SSI, M23

MPN: IE5009
Category: Sonderfunktionen IE5xxx, IE6xxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff IE5009?

The IE5009 SSI interface module allows an SSI encoder to be connected directly. The encoder is powered via the SSI interface. The interface circuit generates a pulse for reading the encoder and makes the incoming data stream available to the controller

Specifications

Connection technology	M23 connector with outer thread, 12-pin
Number of channels	1
Nominal voltage	24 V DC (-15%/+20%)
Signal input	difference signal (RS485)
Encoder supply	24 V DC, from load voltage
Data transfer rates	variable up to 1 MHz, 250 kHz default
Serial input	24 bits (adjustable)
Data direction	read
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Current consumption from US (without sensor current)	55 mA
Bit width in the process image	input: 1 x 32 bit data (1 x 8 bit control/status optional)
Electrical isolation	yes, via IP-Link
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
