Beckhoff IE4112

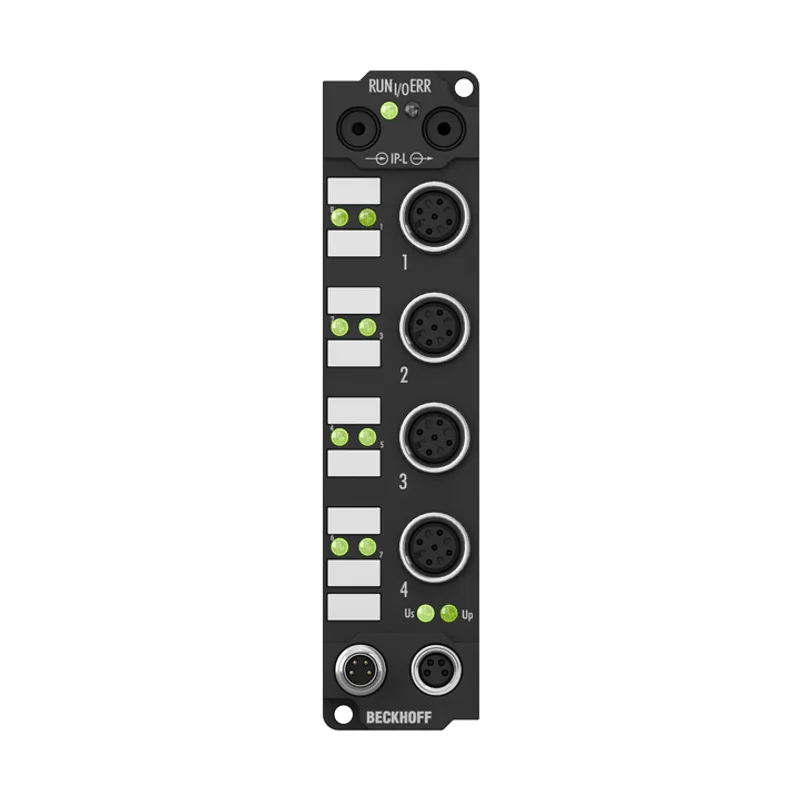

Extension Box, 4-channel analog output, current, 0/4…20 mA, 16 bit, single-ended, M12

MPN: IE4112
Category: Analog-Ausgang IE4xxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff IE4112?

The IE4112 analog output module generates analog output signals in the range from 0/4 to 20 mA. The power is supplied to the process level with a resolution of 15 bits (default), and is electrically isolated. If the input is transmitted without an

Specifications

Number of channels	4 analog outputs
Number of outputs	4
Output connections	M12, screw type
Signal current	0/4…20 mA
Nominal voltage	24 V DC (-15%/+20%)
Load	500 Ω
Resolution	15 bit, configurable to 16 bit
Conversion time	4 ms
Measurement error/uncertainty	±0.1% (relative to full scale value)
Actuator supply	from the auxiliary voltage UP
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	output: 4 x 16 bit data (4 x 8 bit control/status optional)
Electrical isolation	channels/control voltage: yes, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Current consumption from US (without sensor current)	40 mA
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
