Kommunikation IE6xxx Parts

Beckhoff IE6002 – Extension Box, 2-channel communication interface, serial, RS232, M12

Beckhoff

Extension Box, 2-channel communication interface, serial, RS232, M12

Beckhoff IE6012 – Extension Box, 2-channel communication interface, serial, TTY, 20 mA, M12

Beckhoff

Extension Box, 2-channel communication interface, serial, TTY, 20 mA, M12

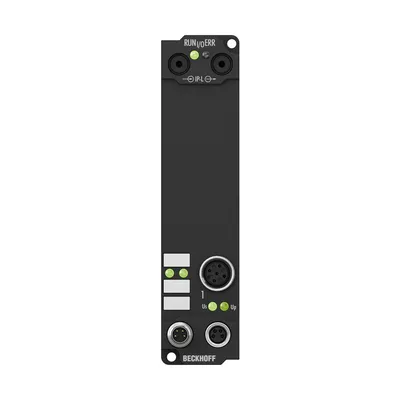

Beckhoff IE6022 – Extension Box, 2-channel communication interface, serial, RS422/RS485, M12

Beckhoff

Extension Box, 2-channel communication interface, serial, RS422/RS485, M12

Compare Kommunikation IE6xxx

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Data transfer channels	Bit transfer	Cable length
IE6002	2 (1/1), TxD and RxD	RS232 (EIA-232)	max. 15 m
IE6012	2 (1/1), TxD and RxD, full duplex	2 x 20 mA	max. 1000 m twisted pair
IE6022	TxD and RxD, full/half duplex	with differential signal	max. 500 m twisted pair

Common to all listed parts

Data transfer rates	1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset
Connection method	M12, screw type
Nominal voltage	24 V DC (-15%/+20%)
Data buffer	128 bytes receive buffer, 16 bytes transmit buffer
Current consumption from US (without sensor current)	40 mA
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
