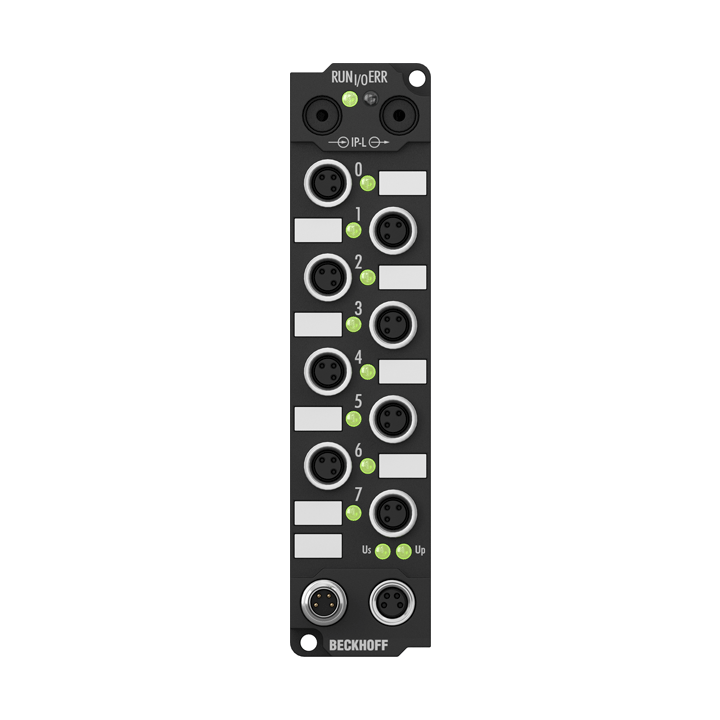

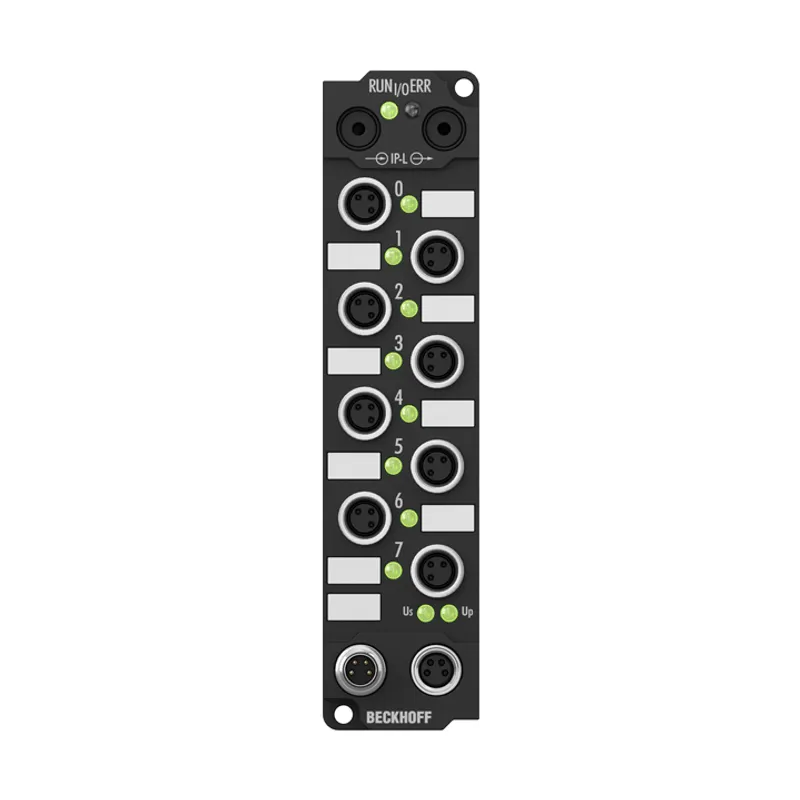

Beckhoff IE2001

Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M8

MPN: IE2001
Category: Digital-Ausgang IE2xxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff IE2001?

The IE2001 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 0.5 A and indicate their status through light emitting diodes. The

Specifications

Number of outputs	8
Output connections	M8, screw type
Load type	ohmic, inductive, lamp load
Nominal output voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof
Short-circuit current	typ. 1.5 A
Auxiliary power current	typ. 20 mA per channel
Current consumption from US (without sensor current)	25 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 outputs
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
