Beckhoff IE1011

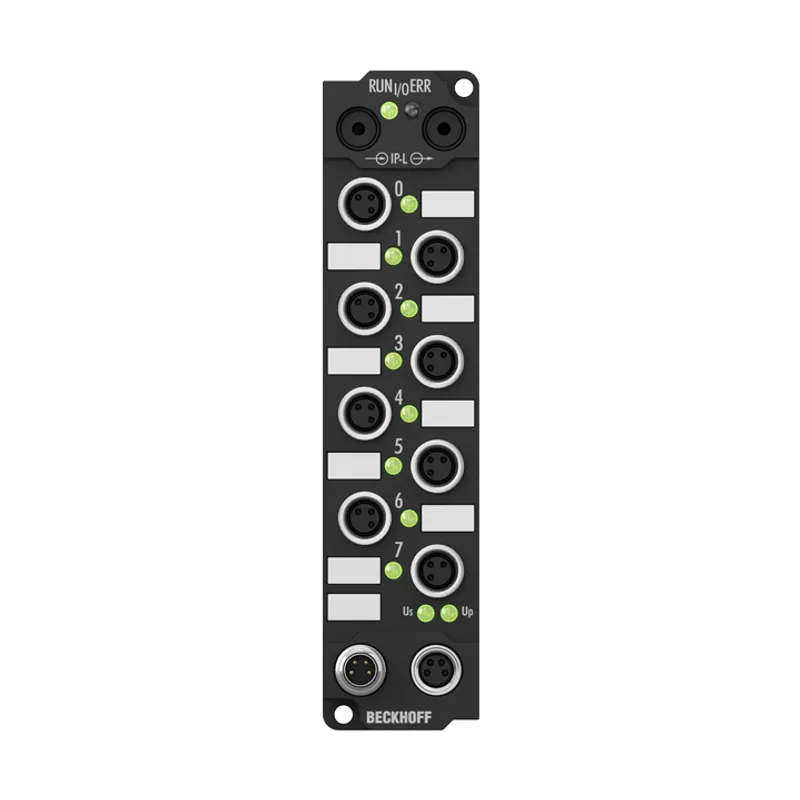

Extension Box, 8-channel digital input, 24 V DC, 0.2 ms, M8

MPN: IE1011
Category: Digital-Eingang IE1xxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff IE1011?

The IE1011 digital input module acquires the binary control signals from the process level and transmits them to the higher-level automation unit. The input filter is 0.2 ms. The state of the signals is indicated by light emitting diodes. The signals are

Specifications

Number of inputs	8
Input connections	M8, screw type
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	0.2 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 2)
“1” signal voltage	11…30 V (EN 61131-2, type 2)
Input current	typ. 6 mA (EN 61131-2, type 2)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Bit width in the process image	8 inputs
Current consumption from US (without sensor current)	25 mA
Electrical isolation	channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
