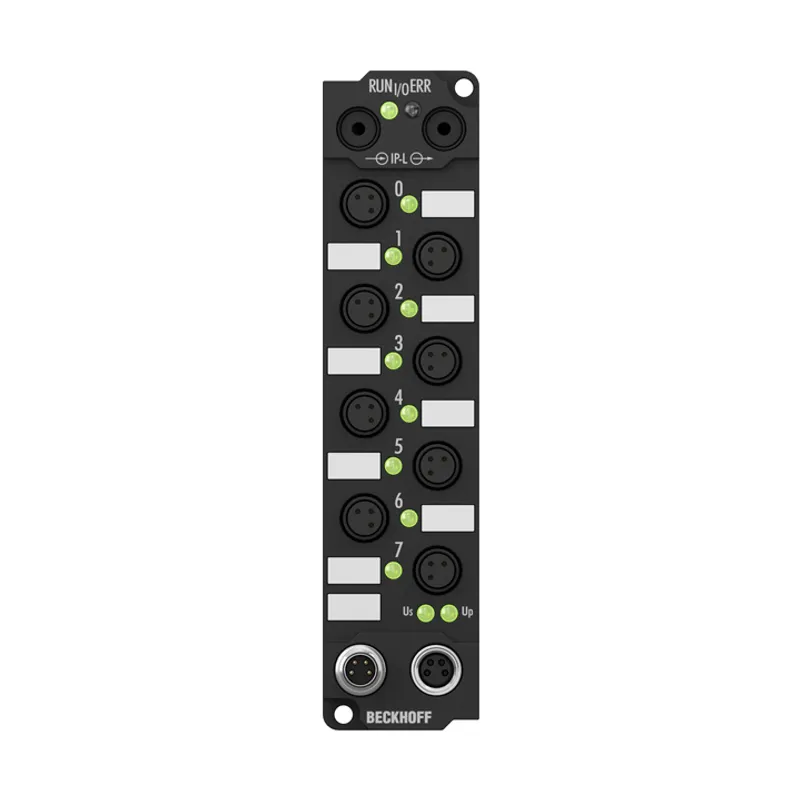

Beckhoff IE2020

Extension Box, 8-channel digital output, 24 V DC, 2 A, Ø8

MPN
IE2020
Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original IE2020 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff IE2020?

The IE2020 digital output module connects the binary control signals from the automation unit on to the actuators at the process level. The eight outputs handle load currents of up to 2 A each, although the total current is limited to 4 A. This makes

Beckhoff IE2020 — Extension Box, 8-channel digital output, 24 V DC, 2 A, Ø8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

LifecycleService phase (discontinued, no longer in Beckhoff's product range)
Number of outputs8
Output connections8 mm, snap type
Load typeresistive, inductive, lamp load
Nominal output voltage24 V DC (-15%/+20%)
Max. output current2 A per channel, individually short-circuit proof, ∑ 4 A
Short-circuit currentmax. 4 A
Auxiliary power currenttyp. 30 mA per channel
Current consumption from U S (without sensor current)25 mA
Power supply connectionfeed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, A-coded
Bit width in the process image8 outputs
Electrical isolationchannels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature0…55°C
Storage temperature-25…+85°C
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP65/66/67 (conforms to EN 60529)/variable
Approvals/markingsCE, UL

IE2020: frequently asked questions

Can I still buy the IE2020 now that it is discontinued?

Yes. Beckhoff has discontinued the IE2020, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IE2020 be shipped?

IE2020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IE2020 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IE2020 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IE2020, subject to availability and destination.
