Digital-Ausgang IE2xxx Parts

Beckhoff IE2512 – Extension Box, 2-channel PWM output, 24 V DC, 2.5 A, M12

Beckhoff

Extension Box, 2-channel PWM output, 24 V DC, 2.5 A, M12

Beckhoff IE2002 – Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M12

Beckhoff IE2001 – Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 0.5 A, M8

Beckhoff IE2022 – Extension Box, 8-channel digital output, 24 V DC, 2 A, M12

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 2 A, M12

Beckhoff IE2021 – Extension Box, 8-channel digital output, 24 V DC, 2 A, M8

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 2 A, M8

Beckhoff IE2042 – Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M12

Beckhoff IE2041 – Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M8

Beckhoff

Extension Box, 8-channel digital output, 24 V DC, 2 A (∑ 12 A), M8

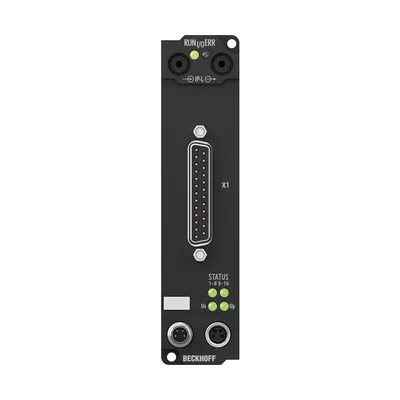

Beckhoff IE2808 – Extension Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

Extension Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff IE2808-0001 – Extension Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Beckhoff

Extension Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub

Compare Digital-Ausgang IE2xxx

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of outputs	Output connections	Load type	Short-circuit current	Auxiliary power current
IE2512	2	M12, screw type	ohmic, inductive	—	—
IE2002	8	M12, screw type	ohmic, inductive, lamp load	typ. 1.5 A	typ. 20 mA per channel
IE2001	8	M8, screw type	ohmic, inductive, lamp load	typ. 1.5 A	typ. 20 mA per channel
IE2022	8	M12, screw type	ohmic, inductive, lamp load	max. 4 A	typ. 30 mA per channel
IE2021	8	M8, screw type	ohmic, inductive, lamp load	max. 4 A	typ. 30 mA per channel
IE2042	8	M12, screw type	ohmic, inductive, lamp load	typ. 4 A	typ. 50 mA per channel
IE2041	8	M8, screw type	ohmic, inductive, lamp load	typ. 4 A	typ. 50 mA per channel
IE2808	16	D-sub socket, 25-pin, UNC4-40	ohmic, inductive, lamp load	max. 1.5 A	typ. 30 mA
IE2808-0001	16	D-sub socket, 25-pin, UNC4-40	ohmic, inductive, lamp load	max. 1.5 A	typ. 30 mA

Common to all listed parts

Nominal output voltage	24 V DC (-15%/+20%)
Current consumption from US (without sensor current)	25 mA
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
