Digital-Eingang ERI1xxx Parts

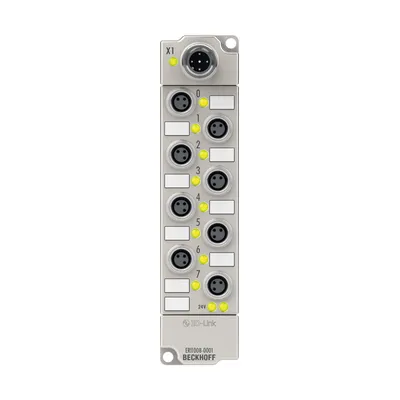

Beckhoff ERI1008-0001 – IO-Link box, 8-channel digital input, 24 V DC, adjustable, M8, zinc die-cast

Beckhoff

IO-Link box, 8-channel digital input, 24 V DC, adjustable, M8, zinc die-cast

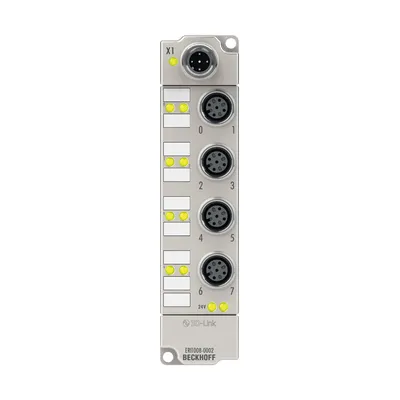

Beckhoff ERI1008-0002 – IO-Link box, 8-channel digital input, 24 V DC, adjustable, M12, zinc die-cast

Beckhoff

IO-Link box, 8-channel digital input, 24 V DC, adjustable, M12, zinc die-cast

Beckhoff ERI1809-0021 – IO-Link box, 16-channel digital input, 24 V DC, adjustable, M8, zinc die-cast

Beckhoff

IO-Link box, 16-channel digital input, 24 V DC, adjustable, M8, zinc die-cast

Beckhoff ERI1809-0022 – IO-Link box, 16-channel digital input, 24 V DC, adjustable, M12, zinc die-cast

Beckhoff

IO-Link box, 16-channel digital input, 24 V DC, adjustable, M12, zinc die-cast

Compare Digital-Eingang ERI1xxx

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of inputs	Input connections	Weight	Dimensions (W x H x D)
ERI1008-0001	8	M8, screw type	approx. 265 g	30 mm x 126 mm x 26.5 mm
ERI1008-0002	8	M12, screw type	approx. 265 g	30 mm x 126 mm x 26.5 mm
ERI1809-0021	16	M8, screw type	approx. 450 g	60 mm x 126 mm x 26.5 mm
ERI1809-0022	16	M12, screw type	approx. 450 g	60 mm x 126 mm x 26.5 mm

Common to all listed parts

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class A
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	3.0 ms (default), adjustable 0…20 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
