Beckhoff

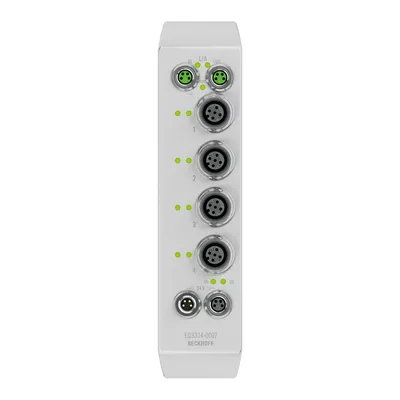

EQ3314-0002EtherCAT Box, 4-channel analog input, temperature, thermocouple, 16 bit, M12, stainless steel
EQ3xxx | Analog input Parts
Beckhoff

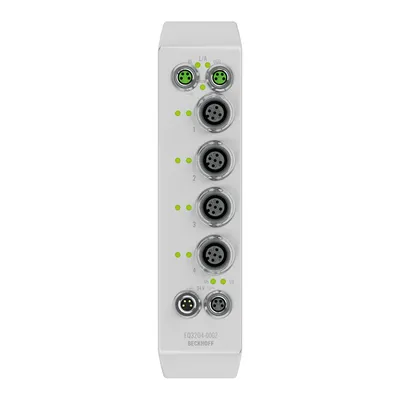

EQ3204-0002EtherCAT Box, 4-channel analog input, temperature, RTD (Pt100), 16 bit, M12, stainless steel
Beckhoff
EQ3174-0002EtherCAT Box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12, stainless steel
Compare EQ3xxx | Analog input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Resolution | Distributed clocks | Input filter |
|---|---|---|---|
| EQ3314-0002 | 0.1°C per digit | – | 5 variations, configurable |
| EQ3204-0002 | 0.1°C per digit | – | 5 variations, configurable |
| EQ3174-0002 | 16 bit (incl. sign) | yes | configurable |
Common to all listed parts
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of inputs | 4 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Current consumption from US | 120 mA |
| Electrical isolation | 500 V |
| Special features | stainless steel, Hygienic Design |
| Operating temperature | -25…+60°C |
