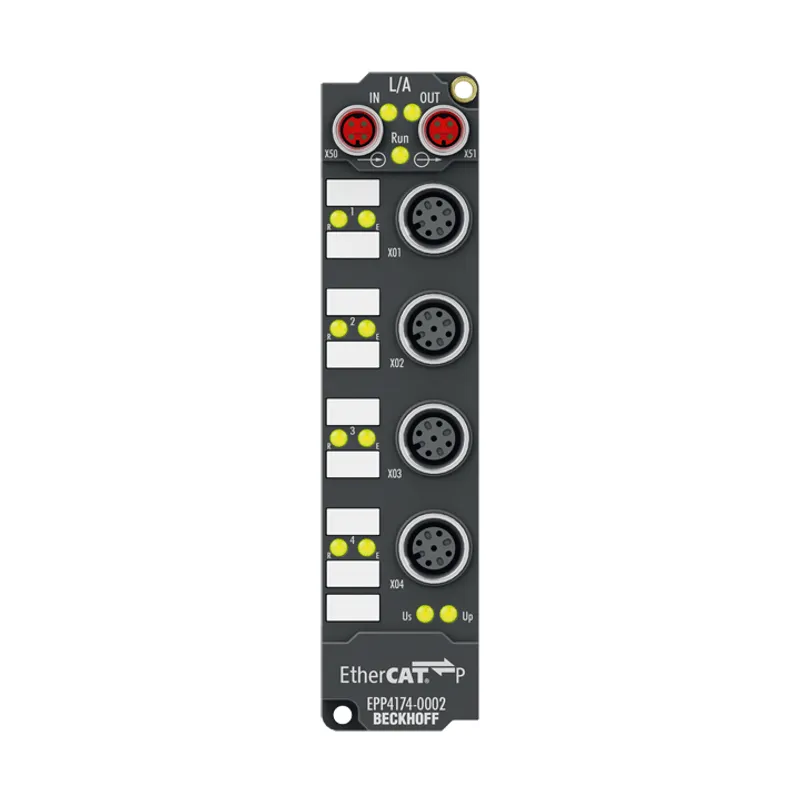

Beckhoff EPP4174-0002

EtherCAT P Box, 4-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

MPN: EPP4174-0002
Category: EPP4xxx | Analog output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP4174-0002?

The EPP4174-0002 EtherCAT P Box has four analog outputs which can be individually parameterized, so that they generate signals either in the -10 to +10 V or the 0/4 to 20 mA range. The voltage or output current is supplied to the process level with a

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, P-coded, shielded
Number of channels	4 analog outputs
Output connections	M12 x 1, 5-pin, a-coded
Signal type	-10/0…+10 V \| 0/4…20 mA, parameterizable per channel
Nominal voltage	24 V DC (-15%/+20%)
Load	> 5 kΩ \| 500 Ω
Resolution	16 bit
Conversion time	~ 40 µs
Measurement error/uncertainty	0.1% (relative to full scale value)
Actuator supply	from the auxiliary voltage UP
Electrical isolation	500 V
Current consumption from US	typ. 100 mA
Special features	current or voltage parameterizable per channel
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
