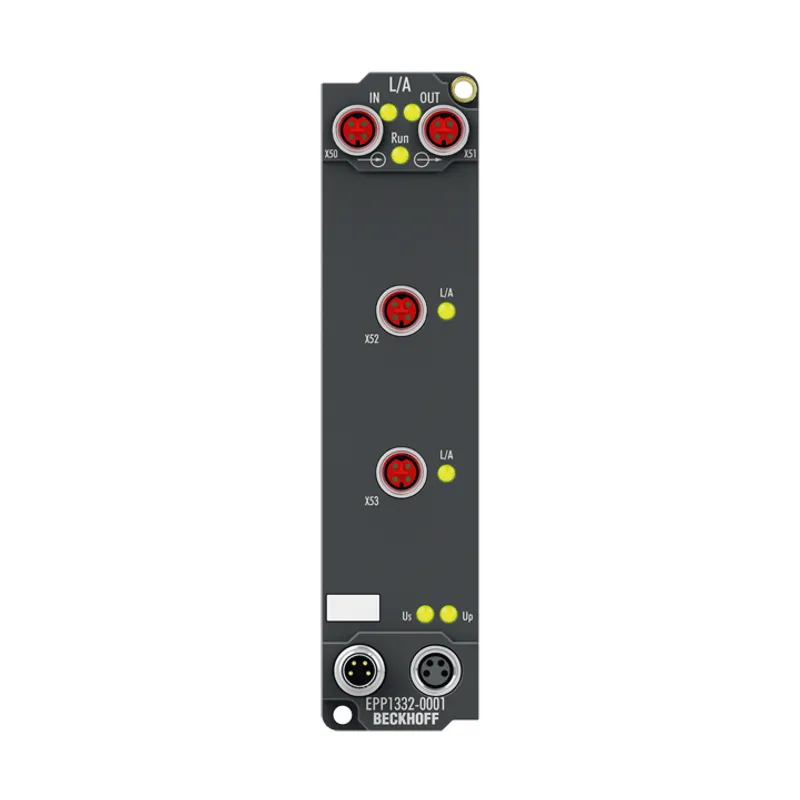

Beckhoff EPP1332-0001

EtherCAT P Box, 2-port EtherCAT P junction, with refresh

MPN: EPP1332-0001
Category: EPPxxxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EPP1332-0001?

The EPP1322-0001 EtherCAT P junction in IP67 are available for flexible topology configurations. The current carrying capacity of 3 A per EtherCAT P segment for US and UP already enables a wide range of sensors and actuators to be used. For larger or

Specifications

Protocol	EtherCAT P
Bus interface	M8 socket, P-coded, shielded
Task within EtherCAT system	2-port EtherCAT P junction and refresh of US and UP
Number of channels	IN: 1 x EtherCAT P, OUT: 3 x EtherCAT P
Nominal voltage	24 V DC (-15%/+20%)
Sum current	max. 3 A per US and UP for all EtherCAT P ports in total
Current consumption from US	typ. 100 mA
Power supply connection	feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded
Distributed clocks	–
Distance between stations	100 m (100BASE-TX)
Data transfer rates	100 Mbit/s
Configuration	not required
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
