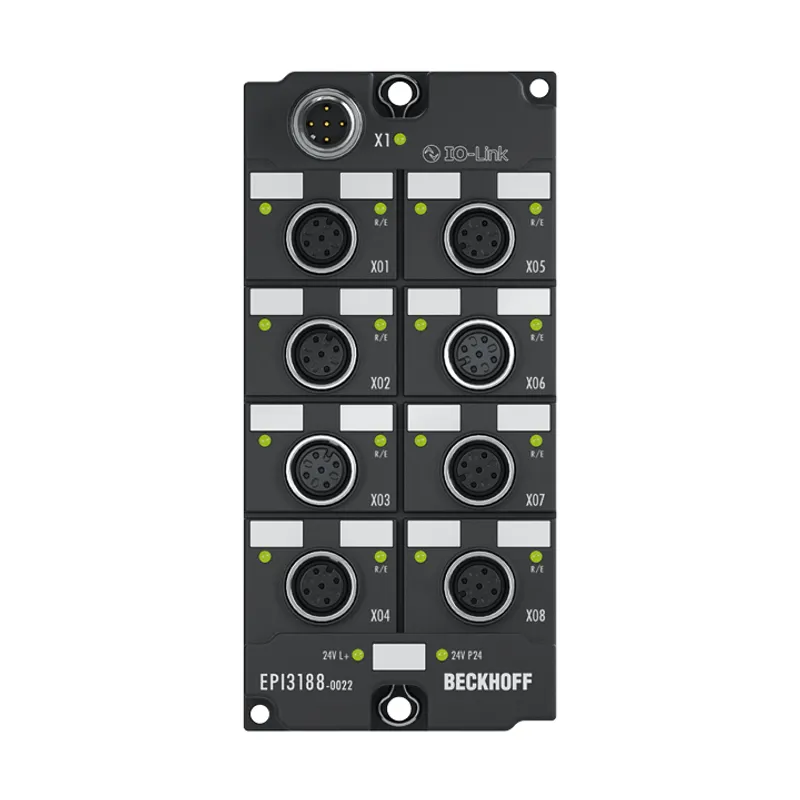

Beckhoff EPI3188-0022

IO-Link box, 8-channel analog input, multi-function, ±10 V, 0/4…±20 mA, 16 bit, single-ended, M12

MPN: EPI3188-0022
Category: Analog-Eingang EPI3xxx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EPI3188-0022?

The EPI3188-0022 IO-Link box has eight analog inputs which can be individually parameterized, so that they process signals either in the ±10 V or the 0/4…±20 mA range. The voltage or input current is digitized with a resolution of 16 bit, and is

Specifications

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class B
Number of inputs	8 (single-ended)
Input connections	M12, screw type
Signal type	-10/0…+10 V \| -20/0/4…+20 mA, parameterizable per channel
Internal resistance	> 200 kΩ \| typ. 85 Ω + diode voltage
Common-mode voltage UCM	max. 35 V
Resolution	16 bit (incl. sign)
Measurement error/uncertainty	±0.3% (relative to full scale value)
Conversion time	~ 100 µs
Input filter limit frequency	5 kHz
Input filter	configurable
Sensor supply	from additional power supply P24
Current consumption	typ. 100 mA from L+
Electrical isolation	L+/P24: yes
Special features	current or voltage parameterizable (0/4…20 mA, -10/0…10 V)
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4

EPI3188-0022: frequently asked questions

When can EPI3188-0022 be shipped?

EPI3188-0022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EPI3188-0022 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EPI3188-0022 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPI3188-0022, subject to availability and destination.
