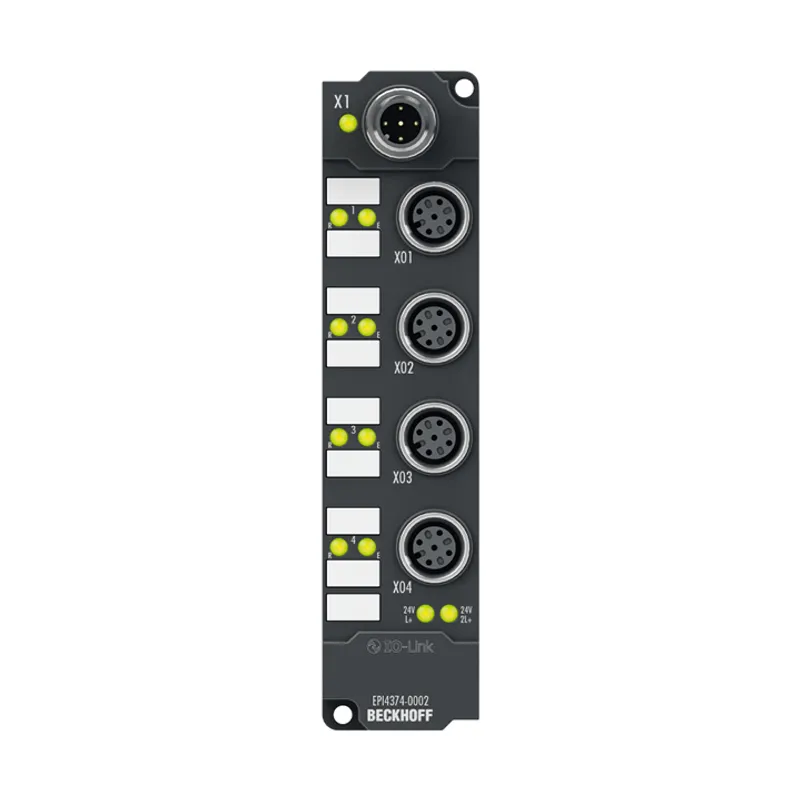

Beckhoff EPI4374-0002

IO-Link box, 2-channel analog input + 2-channel analog output, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

MPN: EPI4374-0002
Category: Analog-Ausgang EPI4xxx

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EPI4374-0002?

The EPI4374-0002 IO-Link box combines two analog inputs and two analog outputs which can be individually parameterized, so that they process/generate signals either in the -10…+10 V or the 0/4…20 mA range. The resolution for the current and voltage

Specifications

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class B
Number of channels	2 analog outputs + 2 analog inputs
Number of outputs	2
Number of inputs	2
Input/output connections	M12, screw type
Signal type	-10/0…+10 V \| 0/4…20 mA, parameterizable per channel
Load	> 5 kΩ \| 500 Ω
Internal resistance	input: > 200 kΩ \| typ. 85 Ω + diode voltage
Resolution	16 bit (incl. sign)
Input filter limit frequency	5 kHz
Conversion time	input: ~ 100 µs, output: ~ 40 µs
Measurement error/uncertainty	0.1% (relative to full scale value)
Electrical isolation	L+/P24: yes
Current consumption	typ. 100 mA from L+
Special features	combi module, current or voltage parameterizable per channel
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3

EPI4374-0002: frequently asked questions

When can EPI4374-0002 be shipped?

EPI4374-0002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EPI4374-0002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EPI4374-0002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPI4374-0002, subject to availability and destination.
