Beckhoff EPI3174-0002

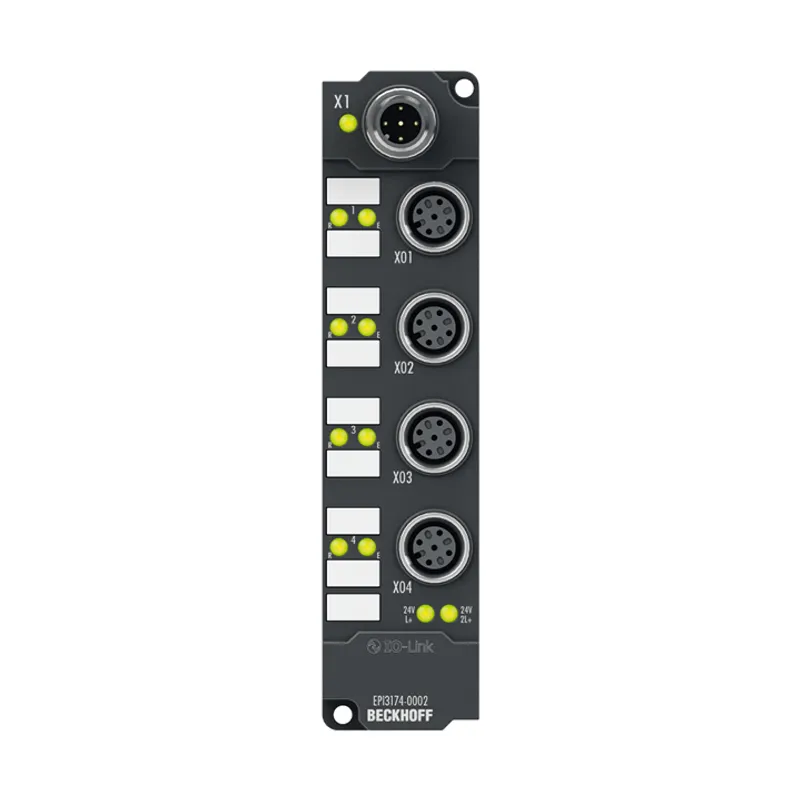

IO-Link box, 4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, differential, M12

MPN: EPI3174-0002
Category: Analog-Eingang EPI3xxx

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EPI3174-0002?

The EPI3174-0002 IO-Link box has four analog inputs which can be individually parameterized, so that they process signals either in the -10…+10 V or the 0/4…20 mA range. The voltage or input current is digitized with a resolution of 16 bits, and is

Specifications

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class B
Number of inputs	4
Input connections	M12, screw type
Signal type	-10/0…+10 V \| 0/4…20 mA, parameterizable per channel
Internal resistance	> 200 kΩ \| typ. 85 Ω + diode voltage
Common-mode voltage UCM	max. 35 V
Resolution	16 bit (incl. sign)
Measurement error/uncertainty	±0.3% (relative to full scale value)
Conversion time	~ 100 µs
Input filter limit frequency	5 kHz
Input filter	configurable
Sensor supply	from additional power supply P24
Current consumption	typ. 100 mA from L+
Electrical isolation	L+/P24: yes
Special features	current or voltage parameterizable (0/4…20 mA, -10/0…10 V)
Weight	approx. 165 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3
