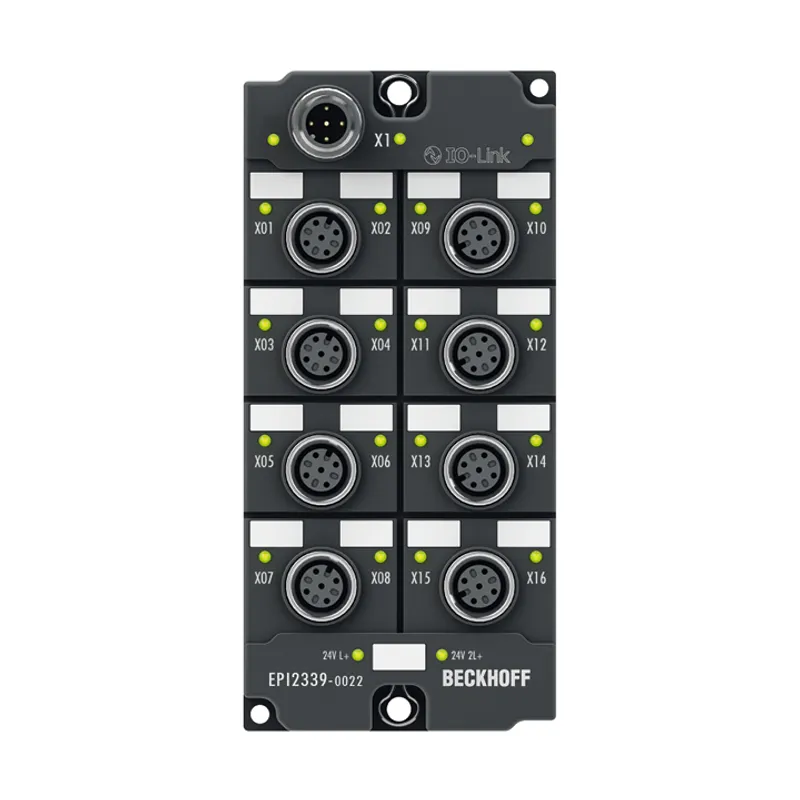

Beckhoff EPI2339-0022
IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M12
- MPN
- EPI2339-0022
- Category
- Digital-Kombi EPI23xx
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EPI2339-0022?
The EPI2339-0022 IO-Link box has 16 digital channels, each of which can optionally be operated as an input or as an output. A filter constant of 3.0 ms is available for the inputs. The outputs are short-circuit proof and protected against inverse
Specifications
Specifications
| Communication | IO-Link |
| Interfaces | 1 x M12 plug, A-coded |
| Data transfer rates | 230.4 kbaud (COM 3) |
| Specification version | IO-Link V1.1, Class B |
| Number of channels | 16 digital inputs or outputs |
| Input/output connections | M12, screw type |
| Input filter | 3.0 ms (default), adjustable 0…20 ms |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | from P24, max 0.5 A, short-circuit proof in total |
| Load type | ohmic, inductive, lamp load |
| Rated load voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, from P24, individually short-circuit proof, ∑ 4 A |
| Short-circuit current | max. 1.5 A |
| Current consumption | typ. 100 mA from L+ |
| Auxiliary power current | typ. 20 mA + load |
| Electrical isolation | L+/P24: yes |
| Weight | approx. 250 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Approvals/markings | CE, UL |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
