Digital-Kombi EPI23xx Parts

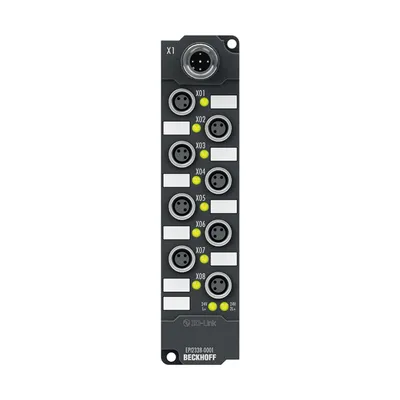

Beckhoff EPI2338-0001 – IO-Link box, 8-channel digital combi, 24 V DC, adjustable, 0.5 A, M8

Beckhoff

IO-Link box, 8-channel digital combi, 24 V DC, adjustable, 0.5 A, M8

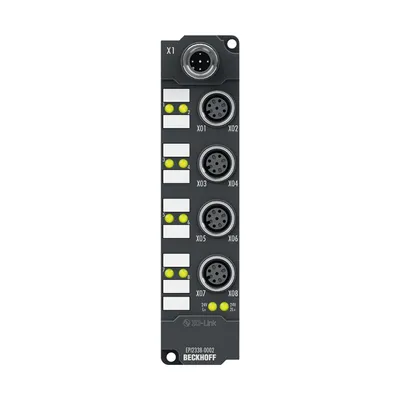

Beckhoff EPI2338-0002 – IO-Link box, 8-channel digital combi, 24 V DC, adjustable, 0.5 A, M12

Beckhoff

IO-Link box, 8-channel digital combi, 24 V DC, adjustable, 0.5 A, M12

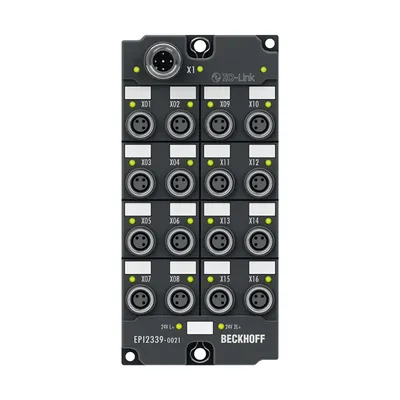

Beckhoff EPI2339-0021 – IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M8

Beckhoff

IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M8

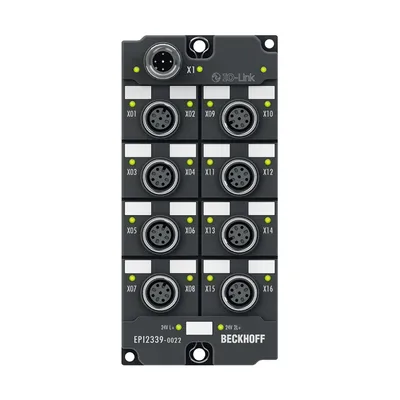

Beckhoff EPI2339-0022 – IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M12

Beckhoff

IO-Link box, 16-channel digital combi, 24 V DC, adjustable, 0.5 A, M12

Compare Digital-Kombi EPI23xx

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Number of channels	Input/output connections	Weight	Dimensions (W x H x D)
EPI2338-0001	8 digital inputs or outputs	M8, screw type	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPI2338-0002	8 digital inputs or outputs	M12, screw type	approx. 165 g	30 mm x 126 mm x 26.5 mm
EPI2339-0021	16 digital inputs or outputs	M8, screw type	approx. 250 g	60 mm x 126 mm x 26.5 mm
EPI2339-0022	16 digital inputs or outputs	M12, screw type	approx. 250 g	60 mm x 126 mm x 26.5 mm

Common to all listed parts

Communication	IO-Link
Interfaces	1 x M12 plug, A-coded
Data transfer rates	230.4 kbaud (COM 3)
Specification version	IO-Link V1.1, Class B
Input filter	3.0 ms (default), adjustable 0…20 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
