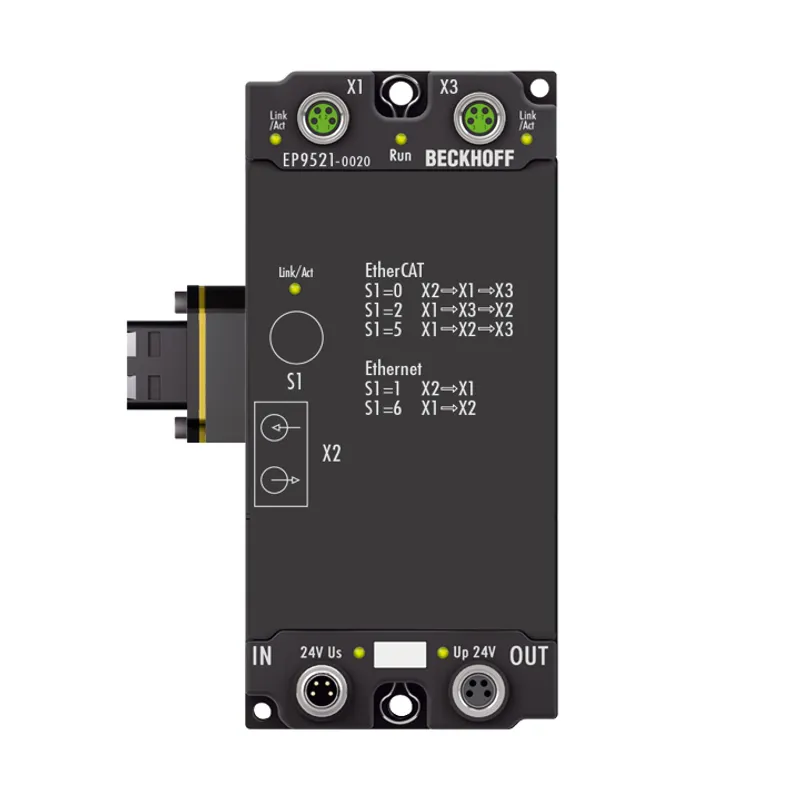

Beckhoff EP9521-0020

EtherCAT Box, media converter, Ethernet/EtherCAT, 100 Mbit/s, 24 V DC

MPN: EP9521-0020
Category: EPxxxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP9521-0020?

The EtherCAT/Industrial Ethernet module EP9521-0020 for Industrial Fast Ethernet/100 Mbit/s serves as media converter from optical fiber to copper and vice versa. The media converter is suitable for multi-mode fiber-optic cables and is used for direct

Specifications

Protocol	EtherCAT/Industrial Fast Ethernet
Bus interface	1 x LC Duplex; 2 x M8, shielded
Task within EtherCAT system	media transition from M8 copper physics to multi-mode fiber optic and back
Number of channels	1
Data transfer medium	multi-mode glass fiber 50/125 µm; Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations	max. 2000 m (100BASE-FX); max. 100 m (100BASE-TX)
Delay	approx. 1 µs
Data transfer rates	100 Mbit/s
Configuration	per rotary switch
Power supply	24 V DC (-15%/+20%)
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
