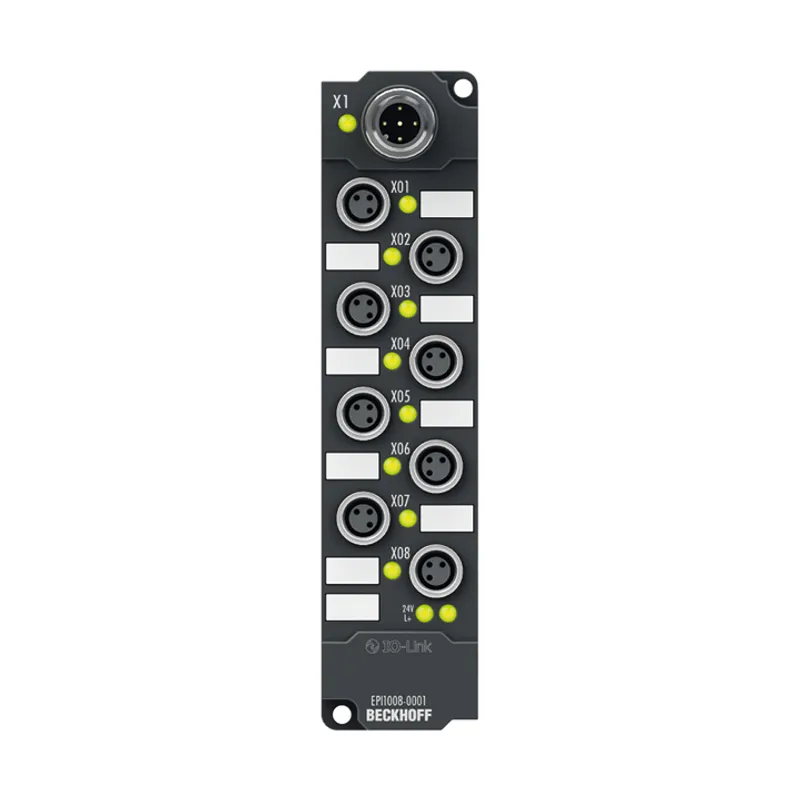

IO-Link box, 8-channel digital input, 24 V DC, adjustable, M8
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Digital-Eingang EPI1xxx |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EPI1008-0001 be shipped?
EPI1008-0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPI1008-0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPI1008-0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPI1008-0001, subject to availability and destination.
The EPI1008-0001 IO-Link box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The
Specifications
Specifications
| Communication | IO-Link |
| Interfaces | 1 x M12 plug, A-coded |
| Data transfer rates | 230.4 kbaud (COM 3) |
| Specification version | IO-Link V1.1, Class A |
| Number of inputs | 8 |
| Input connections | M8, screw type |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 3.0 ms (default), adjustable 0…20 ms |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | max. 0.5 A, from L+, short-circuit proof in total |
| Current consumption | typ. 100 mA from L+ |
| Weight | approx. 165 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3 |
