Beckhoff EP9224-0024

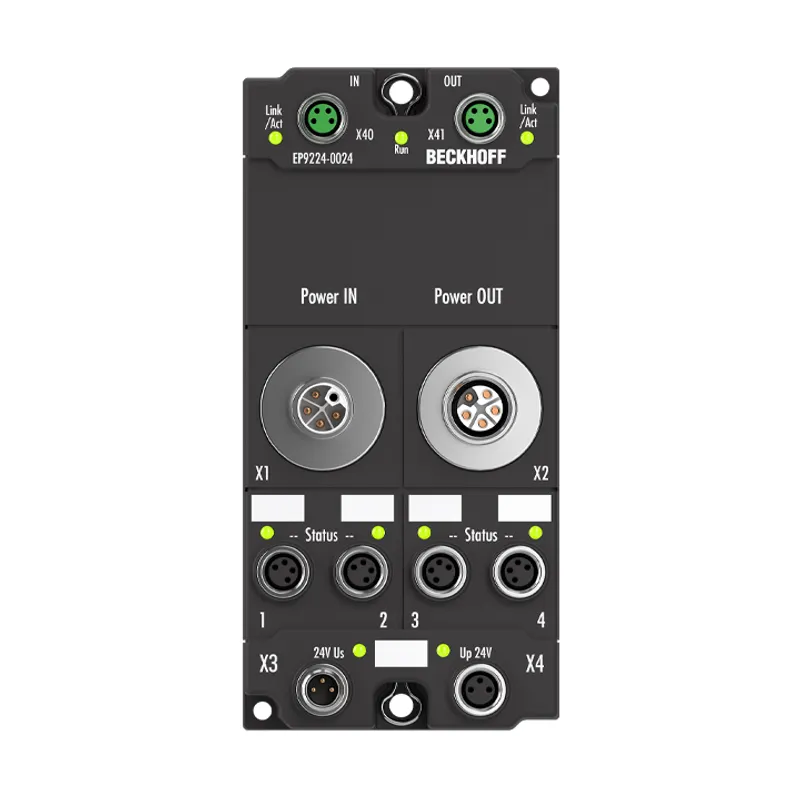

EtherCAT Box, 4/4-channel power distribution, for EtherCAT Box modules, with current measurement/data logging, M12, L-coded

MPN: EP9224-0024
Category: EPxxxx | System

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP9224-0024?

The EP9224-0024 enables connection of four EtherCAT Box power supply branches. In each 24 V branch the current consumption for the control voltage US and the peripheral voltage UP is monitored, limited, and, if necessary, switched off. The input voltage

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of outputs	4 x M8, 4-pin (per US/UP)
Connection method	M8 socket, 4-pin
Max. output current	per M8: 4 A per US and UP
Load type	EtherCAT Box modules
Signaling contact	potential-free make contact, M8
Nominal voltage	24 V DC (-15%/+20%)
Power supply connection	feed: 1 x M12 plug, L-coded, 4 + FE, downstream connection: 1 x M12 socket, L-coded, 4+ FE
Distributed clocks	–
Electrical isolation	500 V
Data logging	recording of relevant data in case of failure
Special features	input voltages/currents, output currents via process data
Weight	approx. 440 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL, Class 2 according to UL1310
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
