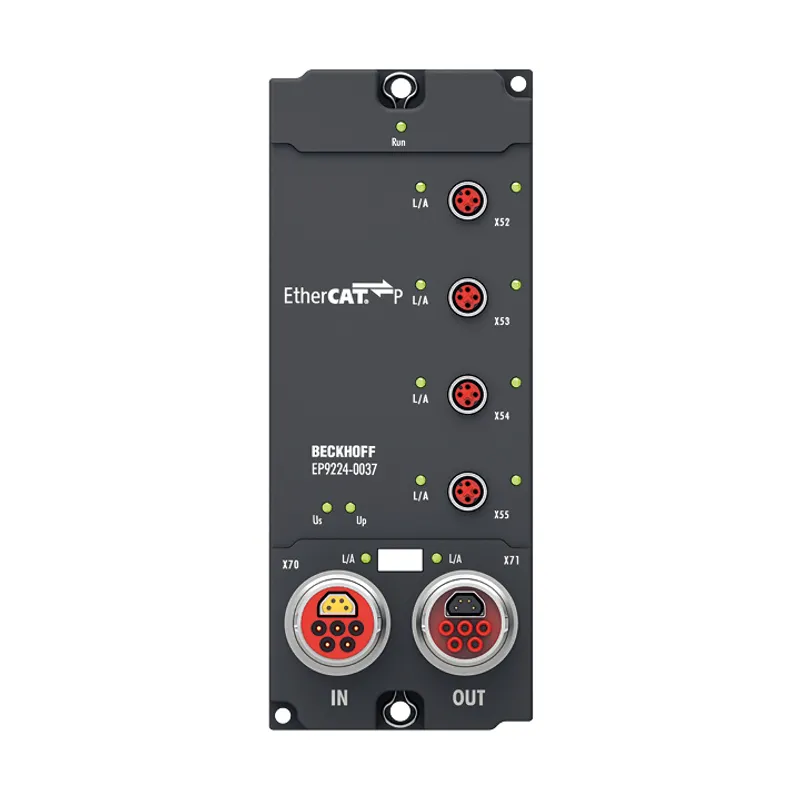

Beckhoff EP9224-0037

EtherCAT Box, 4-channel power distribution, ENP to EtherCAT P

MPN: EP9224-0037
Category: EPxxxx | System

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP9224-0037?

The EP9224-0037 allows the distribution of one B17 ENP input to four EtherCAT P ports with B17-ENP forwarding. In each EtherCAT P branch, the current consumption for control voltage US and peripheral voltage UP is monitored, limited and, if necessary

Specifications

Protocol	EtherCAT
Bus interface	2 x B17 ENP, bayonet fitting, shielded
Task within EtherCAT system	coupling to the EtherCAT network, EtherCAT P junction, feed in and monitoring of US and UP
Number of channels	IN: 1 x ENP, OUT: 1 x ENP, 4 x EtherCAT P
Infeed	ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Power feedthrough	ENP B17 5-pin, max. 15.5 A per US/UP at 45°C
Current rating per port	max. 3 A per US and UP (M8 P-coded)
Data logging	recording of relevant data in case of failure
Special features	input voltages/currents, output currents via process data
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
