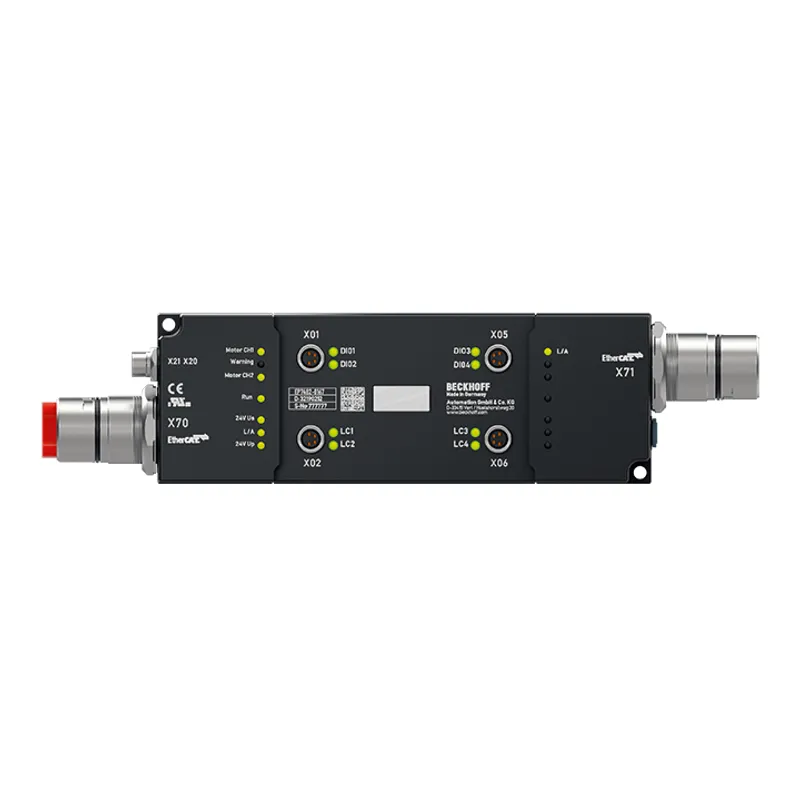

Beckhoff EP7402-0167
EtherCAT Box, 2-channel motion interface, BLDC motor, 48 V DC, 3.5 A, M8
- MPN
- EP7402-0167
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP7402-0167?
The EP7402-0167 EtherCAT Box offers two outputs with integrated MDR controller for the direct connection of 48 V DC conveyor roller motors or other BLDC motors with max. 3.5 A. Eight additional digital inputs/outputs enable connection of e.g.
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x B23 ENP, shielded, bayonet fitting |
| Technology | motor controller for roller conveyor systems |
| Number of channels | 2 motor rollers, 8 digital inputs or outputs |
| Load type | BLDC |
| Supply voltage electronics | 24 V DC (-15%/+20%) |
| Supply voltage power | 18…48 V DC |
| Distributed clocks | – |
| Max. output current | 0.5 A/24 V DC per digital channel, individually short-circuit proof |
| Output current (rms) | 3.5 A |
| Peak current (rms) | 12.0 A |
| Input/output connections | M8 x 1, 4-pin, a-coded |
| Input filter | 10 µs |
| “0” signal voltage | 0…9.6 V |
| “1” signal voltage | 10…30 V |
| Rated speed | max. 12,000 rpm/72,000°/s |
| Rotating field frequency | 599 Hz |
| Sensor supply | from US, max. 0.5 A total, short-circuit proof |
| Power supply connection | feed: 1 x B23 ENP, 5G4; downstream connection: 1 x B23 ENP, 5G4, power transmission 30 A |
| Electrical isolation | 500 V |
| Current consumption from US | typ. 150 mA |
| Special features | compact integration, comprehensive current/voltage diagnostics |
| Weight | approx. 750 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 60 mm x 174 mm x 36.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
