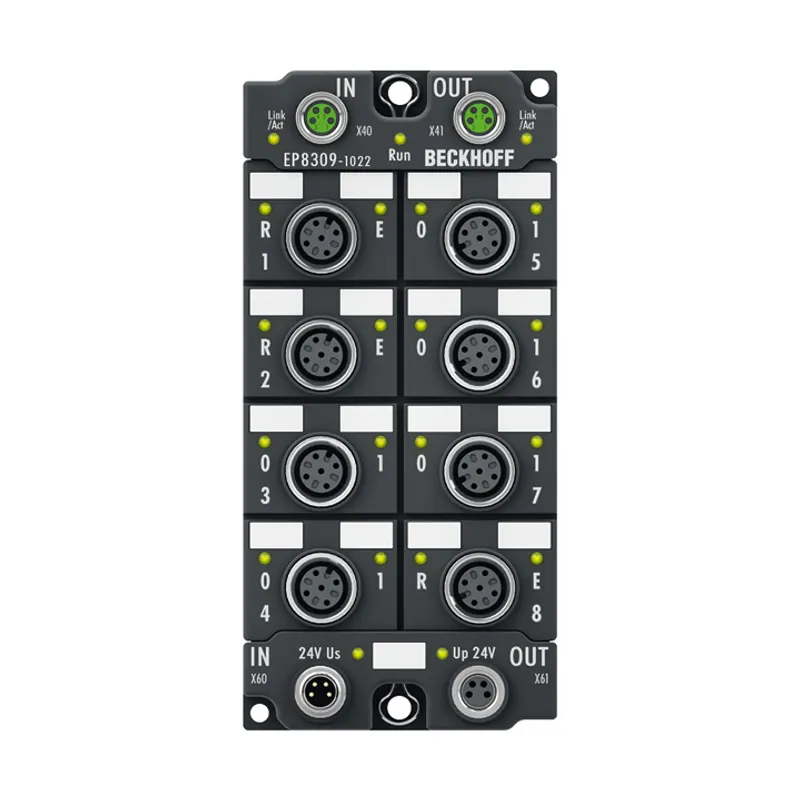

Beckhoff EP8309-1022

EtherCAT Box, multi-functional box, digital, analog, PWM, current-controlled, M12

MPN: EP8309-1022
Category: EP8xxx | Special functions

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP8309-1022?

The EtherCAT Box has various inputs and outputs: eight digital inputs/outputs, two digital tacho inputs, two analog inputs, one analog output and a 1.2 A PWMi output. The current signals have 12-bit resolution. The tacho outputs supply a speed-dependent

Specifications

Protocol	EtherCAT
Bus interface	2 x M8 socket, 4-pin, a-coded, shielded
Number of channels	8 digital inputs or outputs (6…13)
Input filter	3 ms
Limit frequency	2.5 kHz
Connection method	M12, screw type
Number of analog inputs	2, single-ended, 12 bit, 0/4…20 mA (0/2)
Number of analog outputs	1, single-ended, 12 bit, 0/4…20 mA (15)
Number of PWMi outputs	1 x 1.2 A, max. 30 kHz (14)
Nominal voltage	24 V DC (-15%/+20%)
Measurement error/uncertainty	input: 0.3%, output: 0.1% (each relative to full scale value)
Sensor supply	from control voltage US
Actuator supply	from the auxiliary voltage UP
Electrical isolation	500 V
Special features	multi-functional I/O box for universal use
Weight	approx. 250 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL
Dimensions (W x H x D)	60 mm x 126 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
