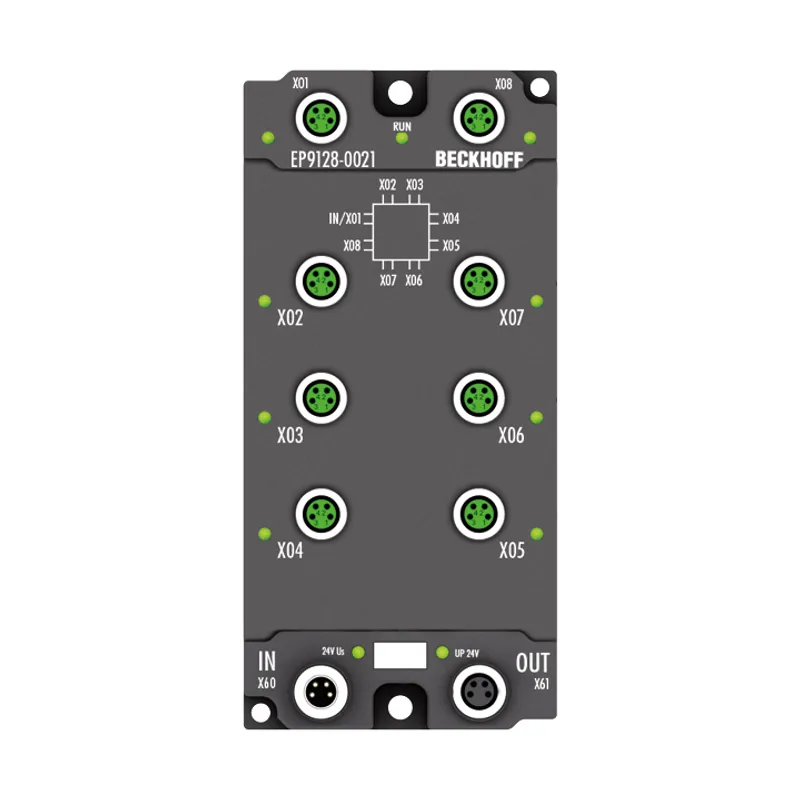

Beckhoff EP9128-0021
EtherCAT Box, 8-port junction, EtherCAT, 100 Mbit/s, 24 V DC, M8
- MPN
- EP9128-0021
- Category
- EPxxxx | System
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff EP9128-0021?
Line, tree or star: EtherCAT supports virtually any topologies, which can also be directly branched in the field using the EtherCAT Box modules. If several junctions are required at one point in the star topology, an EtherCAT junction can be used to
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 8 x M8, shielded |
| Task within EtherCAT system | coupling of EtherCAT junctions |
| Connection method | M8 socket, 4-pin |
| Data transfer medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Distance between stations | max. 100 m (100BASE-TX) |
| Delay | approx. 1 µs per port |
| Data transfer rates | 100 Mbit/s |
| Configuration | not required |
| Power supply | 24 V DC (-15%/+20%) |
| Current consumption 24 V DC | approx. 150 mA |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
