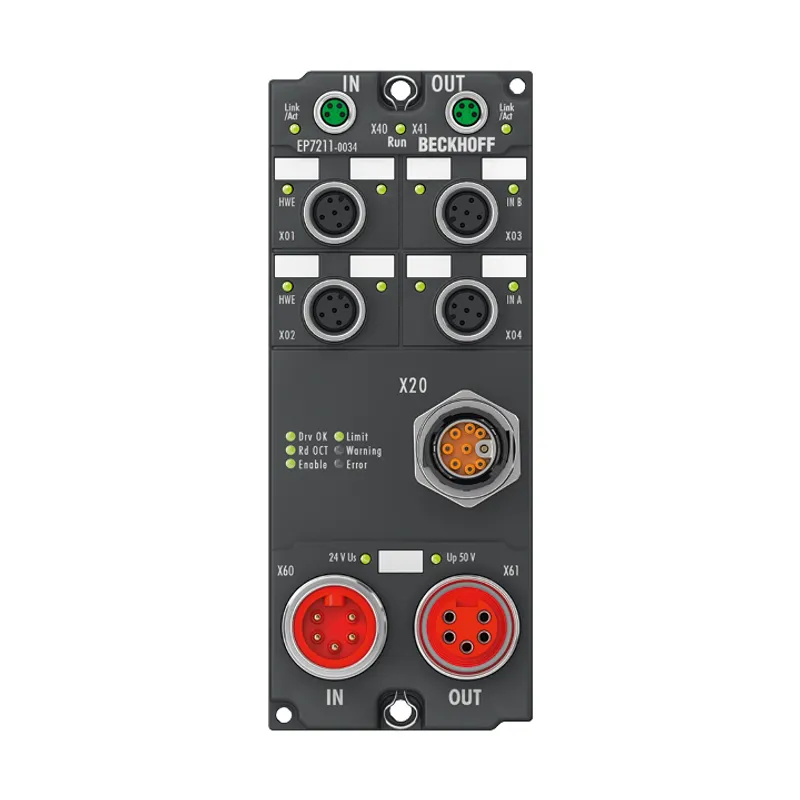

Beckhoff EP7211-0034
EtherCAT Box, 1-channel motion interface, servomotor, 48 V DC, 4.5 A, OCT, suitable for STO applications
- MPN
- EP7211-0034
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EP7211-0034?
The EP7211-0034 servomotor EtherCAT Box with integrated One Cable Technology (OCT) offers high servo performance in a very compact design for AM8100 series motors with up to 4.5 A (Irms). The One Cable Technology combines motor cable and absolute
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Technology | compact drive technology |
| Number of outputs | 1 x servomotor, 1 x motor brake |
| Number of channels | 1 |
| Number of inputs | 2 x end position, 1 x feedback, 1 x HWE |
| Connection method | direct motor connection with OCT |
| Load type | permanent magnet-excited three-phase synchronous motor |
| Supply voltage power | 8…48 V DC (external) |
| Distributed clocks | yes |
| Output current (rms) | 4.5 A |
| Peak current (rms) | max. 9.0 A for 1 s |
| PWM clock frequency | 16 kHz |
| Current controller frequency | 32 kHz |
| Rotating field frequency | 0…599 Hz |
| Rated speed controller frequency | 16 kHz |
| Power supply connection | feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin |
| Electrical isolation | 500 V |
| Current consumption from US | 120 mA |
| Output voltage motor brake | 24 V DC |
| Output current motor brake | max. 0.5 A |
| Realization STO | hard-wired via safe output |
| Safe stop functions | Safe Torque Off (STO) |
| Special features | compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug and play, STO (Safe Torque Off), preset drive profile MDP 742 |
| Weight | approx. 500 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, TÜV SÜD |
| Dimensions (W x H x D) | 60 mm x 150 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
