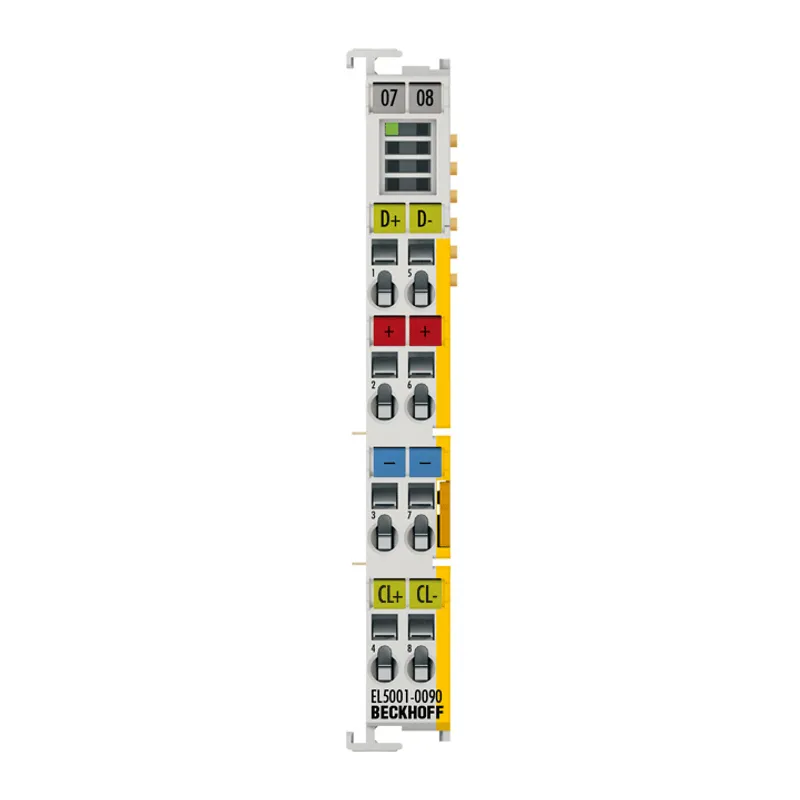

Beckhoff EL5001-0090

EtherCAT Terminal, 1-channel encoder interface, SSI, TwinSAFE SC

MPN: EL5001-0090
Category: EL5xxx | Position measurement

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EL5001-0090?

The EL5001-0090 EtherCAT Terminal is an SSI master and enables the direct connection of an absolute encoder with SSI (synchronous serial interface). Both singleturn and multiturn encoders are supported. The 24 V supply of the encoder can be provided

Specifications

Technology	SSI encoder interface
Number of channels	1
Encoder connection	D+, D-, Cl+, Cl-
Encoder operating voltage	24 V DC (generated from the power contacts)
Distributed clocks	yes
Signal output (pulse)	difference signal (RS422)
Signal input (data)	difference signal (RS422)
Power supply	24 V via power contacts
Data transfer rates	variable up to 1 MHz, 250 kHz default
Serial input	variable up to 32 bit, 24 bit default
Data direction	read
Current consumption power contacts	typ. 20 mA + load
Current consumption E-bus	typ. 120 mA
Electrical isolation	500 V (E-bus/field potential)
Special features	TwinSAFE SC, adjustable baud rate, coding and data length, power fail bit activatable, integrated speed calculation
Weight	approx. 55 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all ESxxxx terminals
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
