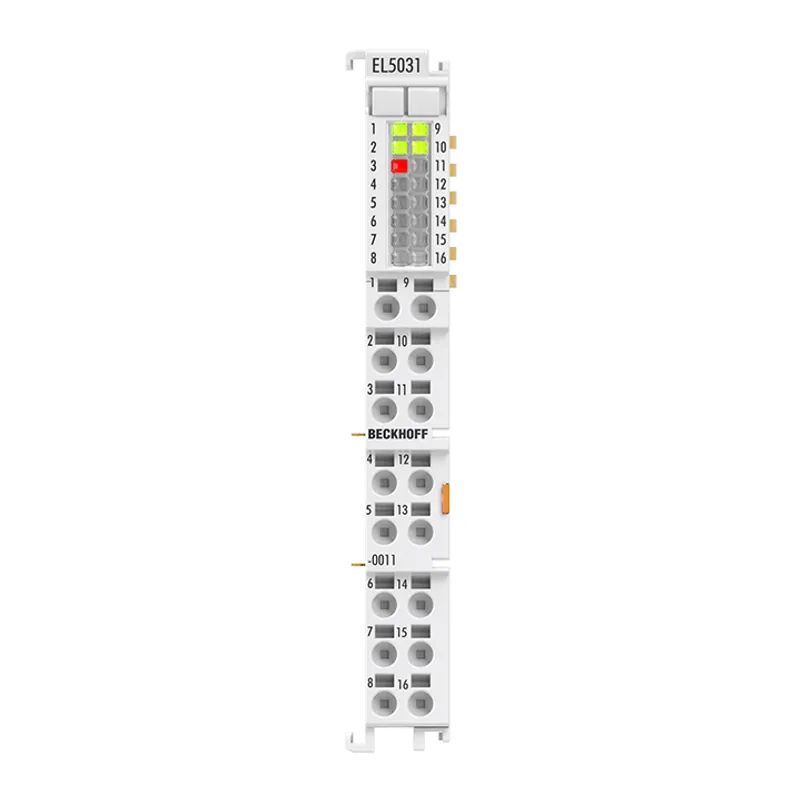

Beckhoff EL5031-0011

EtherCAT Terminal, 1-channel encoder interface, EnDat® 2.2, oversampling

MPN: EL5031-0011
Category: EL5xxx | Position measurement

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EL5031-0011?

The EL5031-0011 is used for the direct connection of an encoder with an EnDat® 2.2 interface. The bidirectional interface enables automatic reading of position values, diagnostic data, internal and external temperature values, and the electronic

Specifications

Technology	EnDat 2.2® interface (order designation EnDat22)
Number of channels	1
Encoder connection	D+, D-, C+, C-
Encoder operating voltage	optionally 5 V DC or 9 V DC, 0.5 A (generated from the 24 V DC power contacts)
Supply voltage electronics	24 V DC (via power contacts)
Commands	reading position values including additional information available for selection via MRS code (Memory Range Select), reading and writing parameters, reset functions
Distributed clocks	yes
Oversampling factor	n = 1…50 selectable
Cycle time	min. 500 µs
Resolution	max. 48 bit position
Conversion time	25 µs/40 ksps
Current consumption power contacts	typ. 150 mA + load
Current consumption E-bus	typ. 120 mA
Electrical isolation	500 V (E-bus/field potential)
Special features	Oversampling, storage of zero offset, electronic nameplate, diagnostics, warning, incl. cable length compensation up to 100 m, readout of encoder temperature values
Weight	approx. 50 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG28…16, st: AWG22…16, f*: AWG26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
