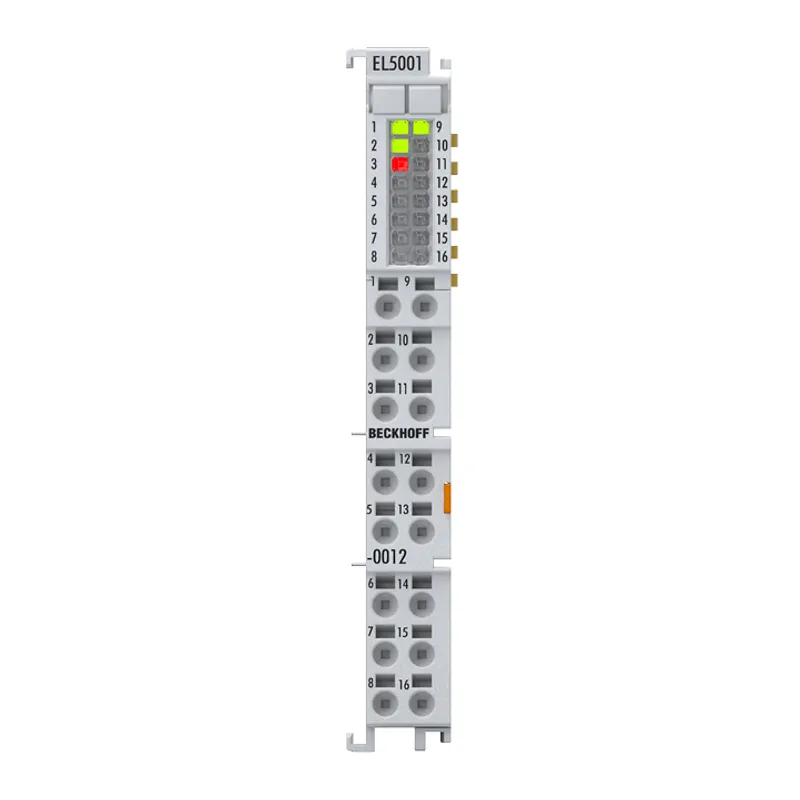

Beckhoff EL5001-0012

EtherCAT Terminal, 1-channel encoder interface, SSI, simulation

MPN: EL5001-0012
Category: EL5xxx | Position measurement

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EL5001-0012?

The EL5001-0012 EtherCAT Terminal allows simulation of single-turn and multi-turn SSI encoders with gray or binary code output and a maximum transmission rate of 2 MHz. This makes it possible to generate a position response to an externally generated SSI

Specifications

Technology	SSI encoder simulation
Specification	type RS485 transceiver
Number of channels	1
Supply voltage electronics	24 V DC (via power contacts)
Distributed clocks	yes
Resolution	max. 64 bit position
Data transfer rates	up to 2 MHz
Current consumption power contacts	typ. 50 mA
Current consumption E-bus	typ. 120 mA
Electrical isolation	500 V (E-bus/field potential)
Special features	SSI slave functionality, coding, parity bit adjustable, position value freely parameterizable in single-turn and multi-turn
Weight	approx. 50 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Connection cross-section AWG	s: AWG28…16, st: AWG22…16, f*: AWG26…19
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
