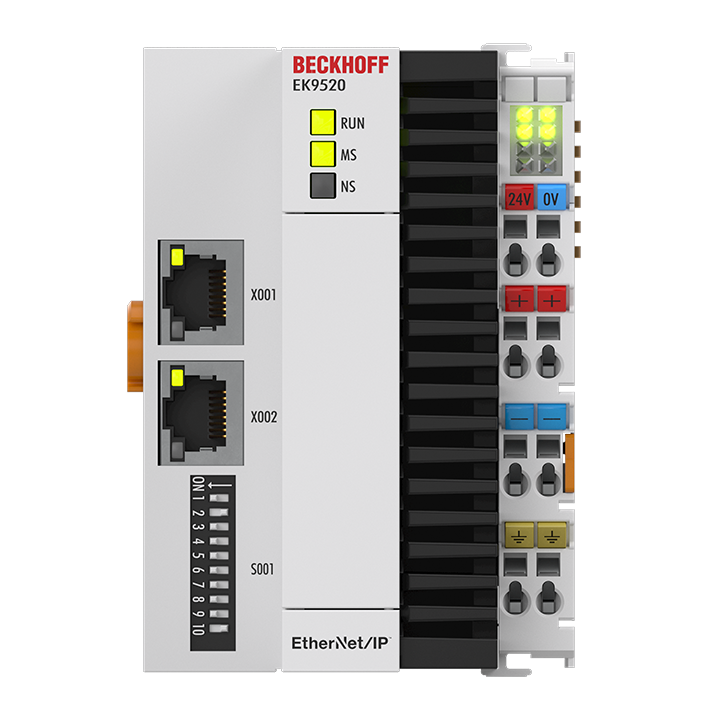

Beckhoff EK9520
EtherNet/IP™ Bus Coupler
- MPN
- EK9520
- Category
- EKxxxx | Bus Coupler
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EK9520?
The EK9520 Bus Coupler is the successor of the EK9500. It connects EtherNet/IP™ networks to the EtherCAT Terminals (ELxxxx) as well as EtherCAT Box modules (EPxxxx) and converts the telegrams from EtherNet/IP™ to the E-bus signal representation. One
Specifications
Specifications
| Task within EtherCAT system | coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to EtherNet/IP™ networks |
| Number of EtherCAT Terminals | depending on the process data size |
| Type/number of peripheral signals | depending on the process data size |
| Protocol | EtherNet/IP™ |
| Data transfer rates | 100/1000 Mbit/s |
| Configuration | not required |
| Bus interface | 2 x RJ45 (switched) |
| Power supply | 24 V DC (-15%/+20%) |
| Input current | typ. 120 mA + (total E-bus current)/4 |
| Current consumption E-bus | up to 2 A |
| Power contacts | max. 24 V DC/max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
| Dimensions (W x H x D) | 64 mm x 100 mm x 72 mm |
EK9520: frequently asked questions
When can EK9520 be shipped?
EK9520 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EK9520 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EK9520 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EK9520, subject to availability and destination.
