Beckhoff EK9500

EtherNet/IP™ Bus Coupler

MPN: EK9500
Category: EKxxxx | Bus Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EK9500?

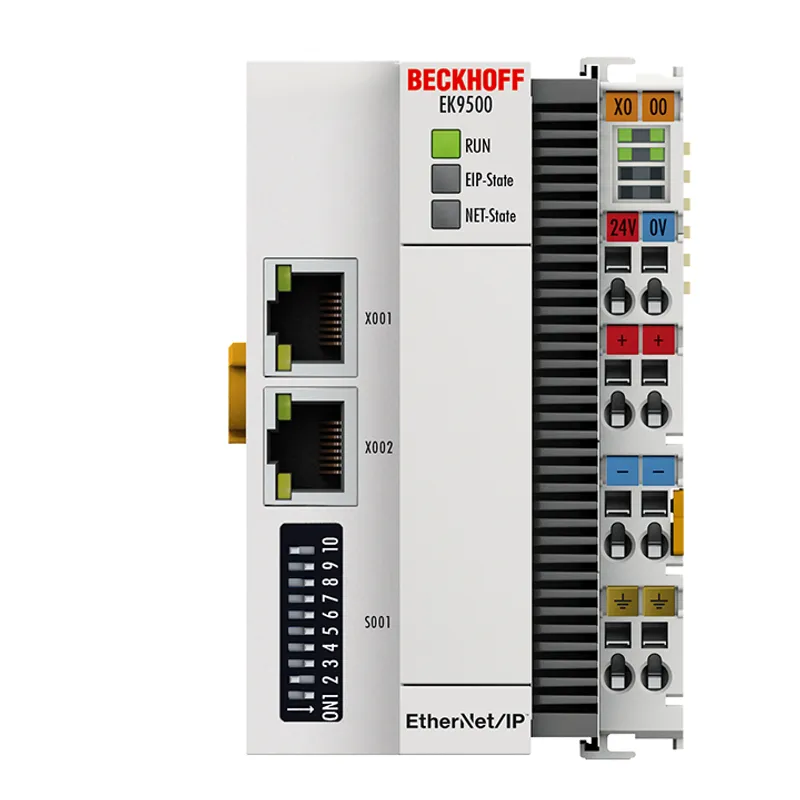

The EK9500 Bus Coupler connects EtherNet/IP™ networks to the EtherCAT Terminals (ELxxxx) as well as EtherCAT Box modules (EPxxxx) and converts the telegrams from EtherNet/IP™ to the E-bus signal representation. One station consists of an EK9500 and any

Specifications

Task within EtherCAT system	coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to EtherNet/IP™ networks
Number of EtherCAT Terminals	depending on the process data size
Type/number of peripheral signals	depending on the process data size
Protocol	EtherNet/IP™
Data transfer rates	100 Mbit/s
Configuration	not required
Bus interface	2 x RJ45 (switched)
Power supply	24 V DC (-15%/+20%)
Input current	typ. 120 mA + (total E-bus current)/4
Current consumption E-bus	up to 2 A
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)	64 mm x 100 mm x 72 mm
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, CCC, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
