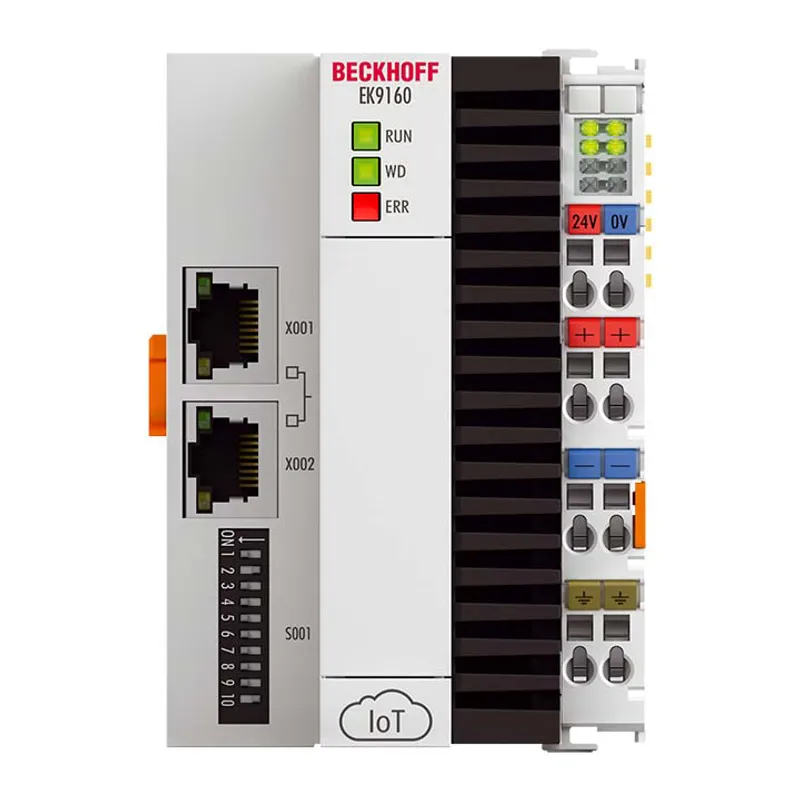

Beckhoff EK9160

IoT Bus Coupler

MPN: EK9160
Category: EKxxxx | Bus Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EK9160?

The EK9160 Coupler provides direct connectivity for EtherCAT I/Os to the Internet of Things (IoT) without the need for a control program. It converts the E-bus signal representation to different IoT communication protocols and enables in this way the

Specifications

Task within EtherCAT system	coupling of standard digital and analog EtherCAT Terminals to the IoT world
Protocol	MQTT, OPC UA
Flash memory	slot for microSD card, 512 MB included (optionally expandable)
Data transfer rates	100 Mbit/s
Configuration	via integrated web server
Bus interface	2 x RJ45 (switched)
Power supply	24 V DC (-15%/+20%)
Input current	150 mA + (total E-bus current)/4
Current supply E-bus	2000 mA
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)	71 mm x 100 mm x 73 mm
Operating temperature	0…55°C (-25…+60°C in preparation)
Storage temperature	-25…+85°C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
