Beckhoff EKM1101

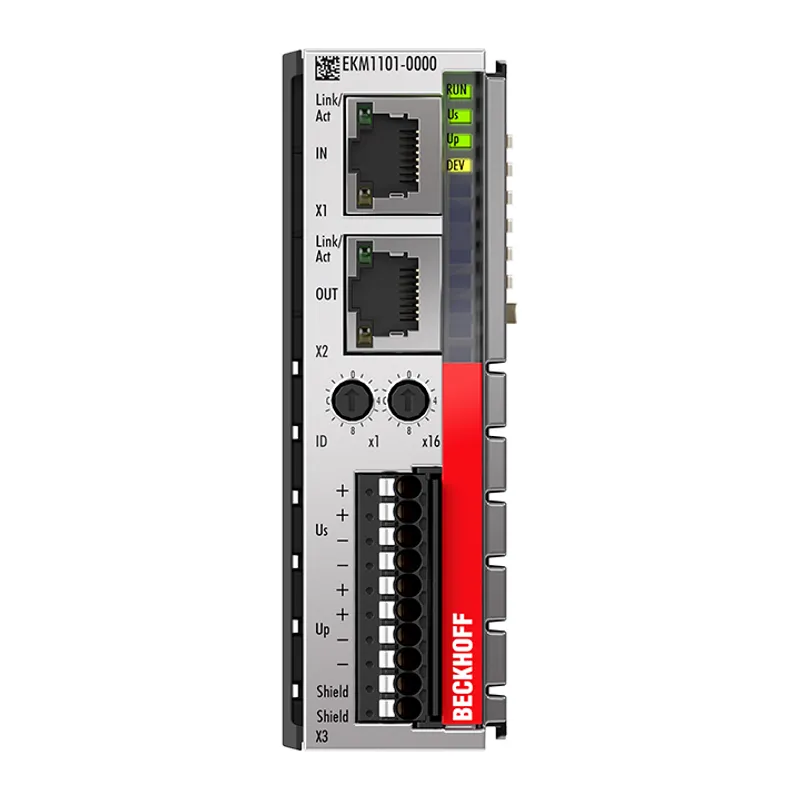

EtherCAT Coupler with ID switch and diagnostics

MPN: EKM1101
Category: EK1xxx, BK1xx0 | EtherCAT Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EKM1101?

The EKM1101 EtherCAT Coupler connects the ELMxxxx EtherCAT measurement modules with EtherCAT. Such a station consists of an EKM1101 coupler, any number of EtherCAT Terminals and a bus end cap or an EtherCAT extension such as EK1110 or EK1122. The coupler

Specifications

Task within EtherCAT system	coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks, with identity verification
Data transfer medium	Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations	max. 100 m (100BASE-TX)
Number of EtherCAT Terminals	up to 65,534
Type/number of peripheral signals	max. 4.2 GB addressable I/O points
Number of configurable IDs	256
Protocol	EtherCAT
Delay	approx. 1 µs
Data transfer rates	100 Mbit/s
Bus interface	2 x RJ45
Power supply	24 V DC (-15%/+20%)
Current consumption from US	100 mA + (∑ E-bus current/4)
Current consumption from UP	50 mA + load
Current supply E-bus	2000 mA
Power contacts	max. 24 V DC/max. 2 A outgoing
Electrical isolation	500 V (supply voltages Us/Up to E-bus/power contacts)
Diagnostics in the process image	yes
Special features	electrically isolated output voltages, reverse polarity protection, diagnostics of supply and output voltages, internal temperature and position and vibration
Weight	approx. 450 g
Operating temperature	-25…+55°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, CCC, ATEX, IECEx, cFMus
Ex marking	ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
Design form	metal housing with signal LEDs
Material	zinc die-cast
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.2…1.5 mm², st: 0.2…1.5 mm², f*: 0.25…0.75 mm²
Connection cross-section AWG	s: AWG24…14, st: AWG24…14, f*: AWG24…14
Stripping length	8…9 mm
Dimensions (W x H x D)	30 mm x 100 mm x 95 mm
