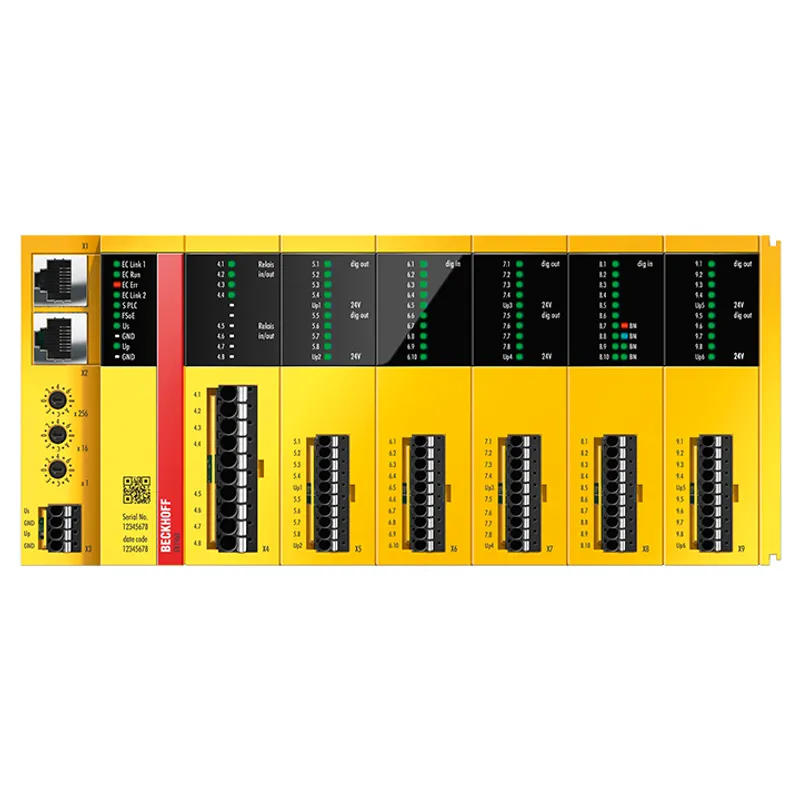

Beckhoff EK1960

TwinSAFE Compact Controller

MPN: EK1960
Category: EK1xxx, BK1xx0 | EtherCAT Coupler

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EK1960?

The EK1960 TwinSAFE Compact Controller extends the range of applications of the TwinSAFE integrated safety solution. The core of the safety controller corresponds to the functionality of the EL6910 dedicated safety controller. Thanks to the compact

Specifications

Connection technology	1-wire
Specification	link unit between safe input and output signals
Number of inputs	20
Number of outputs	24 (4 optional relay outputs)
Max. output current	2 A (simultaneity factor 50 % at 2 A)
Protocol	TwinSAFE/Safety over EtherCAT
Cycle time	approx. 1 ms/according to project size
Fault response time	≤ watchdog time (parameterizable)
Current consumption from US/UP	typ. 80 mA/typ. 2 mA
Installation position	horizontal
Safety standard	EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3)
Protection rating	IP20

EK1960: frequently asked questions

When can EK1960 be shipped?

EK1960 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EK1960 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EK1960 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EK1960, subject to availability and destination.
