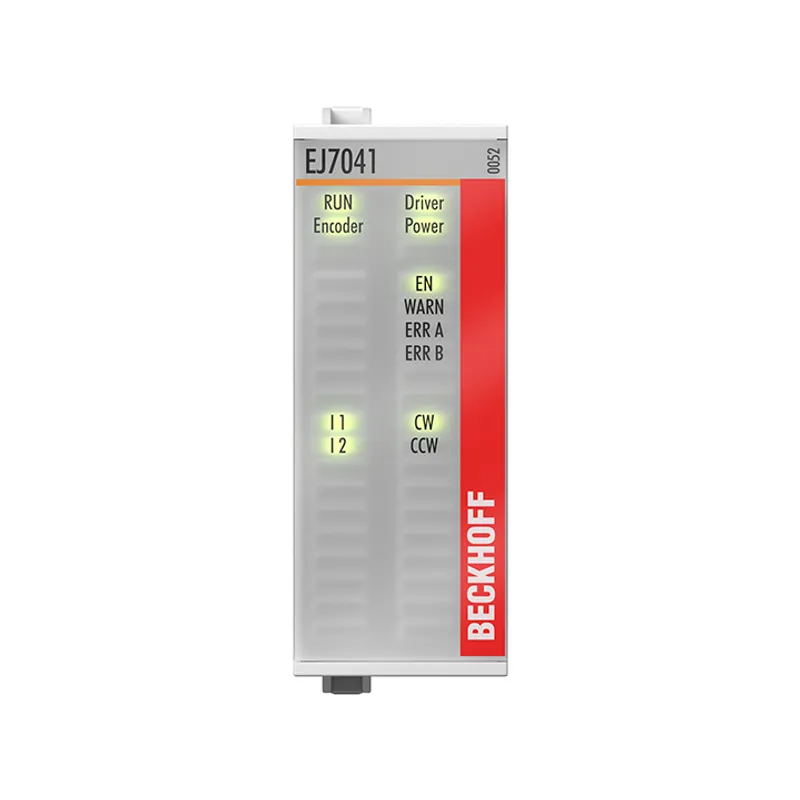

Beckhoff EJ7041-0052
EtherCAT plug-in module, 1-channel motion interface, stepper motor, 48 V DC, 5 A
- MPN
- EJ7041-0052
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ7041-0052?
The EJ7041-0052 EtherCAT plug-in module is designed for the direct connection of stepper motors in the medium power range up to 5 A and for a voltage range of 8…48 V DC. The compact Stepper Motor output stage is accommodated in the module together with
Specifications
Specifications
| Technology | compact drive technology |
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Number of channels | 1 |
| Number of inputs | 2 x end position |
| Number of outputs | 1 x stepper motor (2 phases) |
| Load type | 2-phase stepper motor (uni-/bipolar) |
| Supply voltage power | 8…48 V DC (via distribution board) |
| Supply voltage electronics | 24 V DC (via signal distribution board) |
| Output current | max. 5.0 A (overload- and short-circuit proof) |
| Step frequency | 1000, 2000, 4000 or 8000 full steps (configurable) |
| Step pattern | 64-fold micro stepping |
| Current controller frequency | approx. 16 kHz |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Encoder input signal | – |
| Input frequency | – |
| Auxiliary power current | typ. 50 mA |
| Current consumption E-bus | typ. 140 mA |
| Distributed clocks | yes |
| Electrical isolation | 500 V (E-bus/field potential) |
| Special features | travel distance control |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 1, 8 |
| Locking | latching lug in circuit board cut-out |
| Dimensions (W x H x D) | 24 mm x 66 mm x 55 mm |
EJ7041-0052: frequently asked questions
When can EJ7041-0052 be shipped?
EJ7041-0052 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJ7041-0052 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJ7041-0052 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJ7041-0052, subject to availability and destination.
